| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

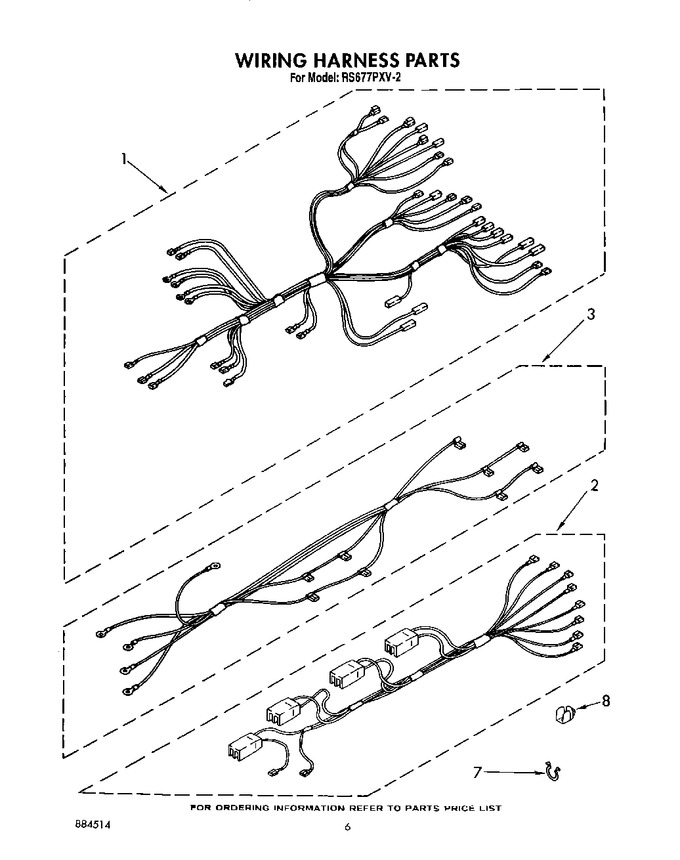

| 1 | 3148595 | Wiring Harness (main) |
|
- | |||||
| 2 | 3147825 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 3147269 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | 308504 | Screw (2) |
|
- | |||||
| 7 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | 307748 | Screw (2) |
|
- | |||||
| 8 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 8 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 8 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 8 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 8 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 8 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 8 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 8 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 8 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 8 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 8 | WP261869 | Citrine White (Replaces: 261869) |
|
$ 23.85 | |||||
| 8 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 8 | 261890 | Harvest Gold |
|
- | |||||
| 8 | 285365 | Toast |
|
- | |||||
| 8 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 8 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 8 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 8 | 350942 | Primer |
|
$ 80.69 | |||||
| 8 | 350941 | Leveler (primer) |
|
- | |||||
| 8 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 51.34 | |||||
| 8 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 8 | 978883 | Almond |
|
- | |||||
| 8 | 261891 | Harvest Gold |
|
- | |||||
| 8 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 8 | 285368 | Platinum |
|
- | |||||
| 8 | 786032 | Ebony (microwave) |
|
- | |||||
| 8 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 8 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 8 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 8 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 8 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 8 | 261881 | Rotisserie Kit |
|
- | |||||
| 8 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 8 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 8 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 8 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 8 | 3147832 | Terminal, Adapter |
|
- | |||||
| 8 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 8 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 8 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 8 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 8 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| LIT3148643 | Tech Sheet |
|
- | ||||||
| LIT884514 | Repair Parts List |
|
- | ||||||
| LIT313358 | Cooking Guide |
|
- | ||||||
| LIT3149927 | Use & Care Guide |
|
- | ||||||
| LIT3147390 | Instructions, Installation |
|
- |
