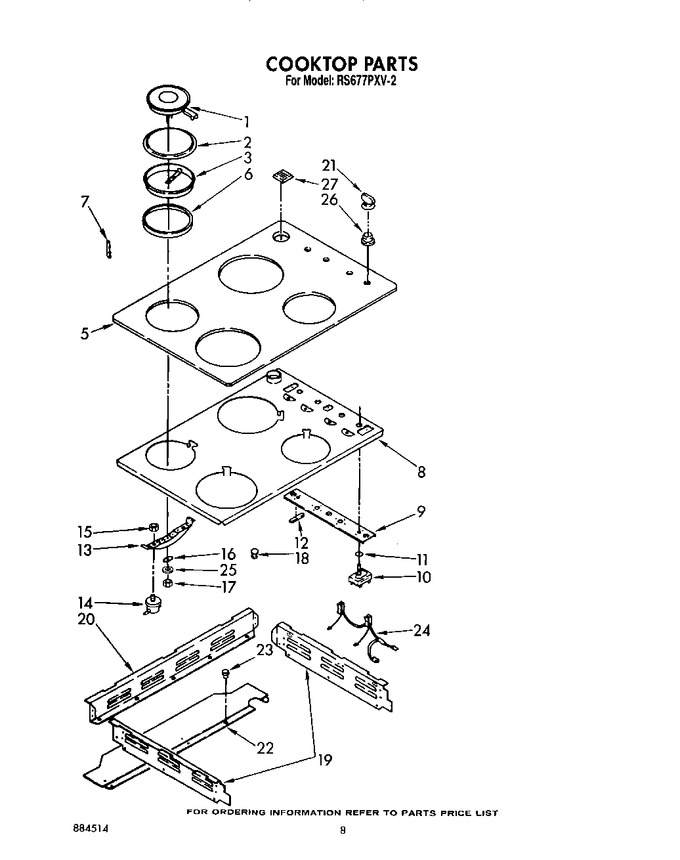

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3147131		Unit, Surface 6`` (2)   (Replaces: 3147131)				$ 244.76
1	WP3147132		Unit, Surface (8`` (2))   (Replaces: 3147132)				$ 272.69
2	3147185		Ring, Intermediate (6`` (2))		Appelez-nous	-
2	3147186		Ring, Intermediate (8`` (2))		Appelez-nous	-
3	3147187		Gasket (6`` (2))		Appelez-nous	-
3	3147188		Gasket (8`` (2))		Appelez-nous	-
5	3148923		Glass, Top		Appelez-nous	-
6	3148562		Seal (8`` (2))		Appelez-nous	-
6	3148561		Seal (6`` (2))		Appelez-nous	-
7	3148563		Hook, Seal (4)		Appelez-nous	-
8	3147038		Plate, Backup		Appelez-nous	-
9	254225		Screw (3)		Appelez-nous	-
9	3147735		Bracket, Switch		Appelez-nous	-
10	3148949		Switch, Infinite (6`` (2))				$ 67.77
10	3148950		Switch, Infinite (8`` (2))				$ 28.56
11	WP486579		Screw (4)   (Replaces: 311865)				$ 6.61
11	3149894		Seal, Shaft (4)		Appelez-nous	-
12	3147485		Tape, Foam		Appelez-nous	-
13	3147703		Bracket, Mounting 6``(2)		Appelez-nous	-
13	3147704		Bracket, Mounting 8`` (2)		Appelez-nous	-
14	3148397		Protector (4)		Appelez-nous	-
15	3147190		Nut (4)		Appelez-nous	-
16	3147191		Spring, Leaf (4)		Appelez-nous	-
17	3147189		Nut (4)		Appelez-nous	-
18	309221		Lens (2)		Appelez-nous	-
19	3147025		Rail, Support (r.h.)		Appelez-nous	-
19	3147024		Rail, Support (l.h.)		Appelez-nous	-
20	3147061		Rail, Back		Appelez-nous	-
20	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
21	3150374		Knob, Control (4)		Appelez-nous	-
22	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
22	3147566		Cover, Top		Appelez-nous	-
23	258109		Bushing		Appelez-nous	-
24	3149039		Light, Indicator		Appelez-nous	-
25	3148615		Washer (4)		Appelez-nous	-
26	3149899		Seal, Switch		Appelez-nous	-
27	3147037		Cover, Vent		Appelez-nous	-
