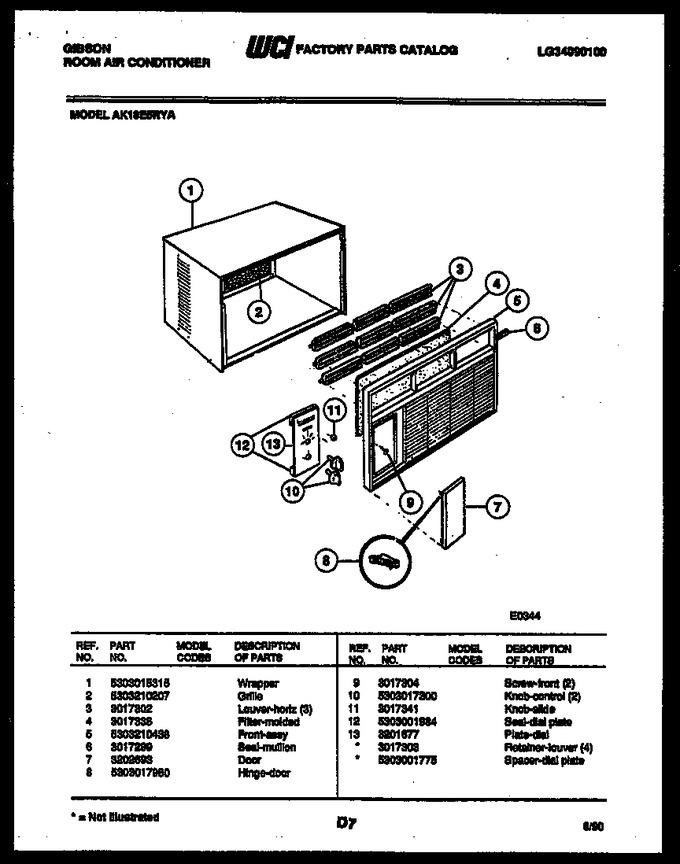

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Grille |
|
- | |||||
| 3 | 3017302 | Louver Horiz. (3) |
|
- | |||||
| 4 | 3017336 | Filter (molded) |
|
- | |||||
| 5 | 5303210438 | Front-assy |
|
- | |||||
| 6 | 3017299 | Seal Mullion |
|
- | |||||
| 7 | 3202693 | Door |
|
- | |||||
| 8 | 5303017980 | Hinge - Door |
|
- | |||||
| 9 | 3017304 | Screw Front (2) |
|
- | |||||
| 10 | 5303017300 | Knob-control, (2) |
|
- | |||||
| 11 | 3017341 | Knob-slide |
|
- | |||||
| 12 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 13 | 3201677 | Plate-dial |
|
- |
