02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

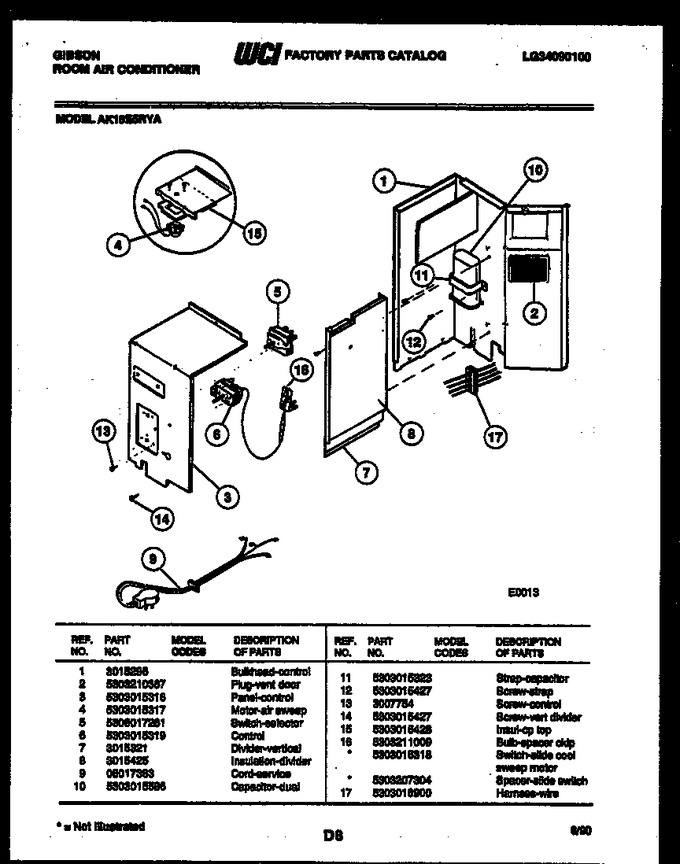

| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303210367 | Plug-vent Door |
|
- | |||||
| 3 | 5303015316 | Panel-control |
|
- | |||||
| 4 | 5303015317 | Motor-air Sweep |
|
- | |||||
| 5 | 5308017261 | Switch-selector |
|
- | |||||
| 6 | 5303015319 | Control |
|
- | |||||
| 7 | 3015321 | Divider - Vertical |
|
- | |||||
| 8 | 3015425 | Insulation-divider |
|
- | |||||
| 9 | 08017363 | Cord-service |
|
- | |||||
| 10 | 5303015596 | Capacitor-dual |
|
- | |||||
| 11 | 5303015323 | Strap-capacitor |
|
- | |||||
| 12 | 5303015427 | Screw-strap |
|
- | |||||
| 13 | 3007754 | Screw-control |
|
- | |||||
| 14 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 15 | 5303015428 | Insul-cp Top |
|
- | |||||
| 16 | 5303211009 | Bulb-spacer Ckip |
|
- | |||||
| 17 | 5303016900 | Harness-wire |
|
- | |||||
| 16A | 5303015318 | Switch-slide Cool Sweep Motor (non-illustrated) |
|
- | |||||
| 16B | 5303207304 | Spacer-slide Switch (non-illustrated) |
|
- |
