02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

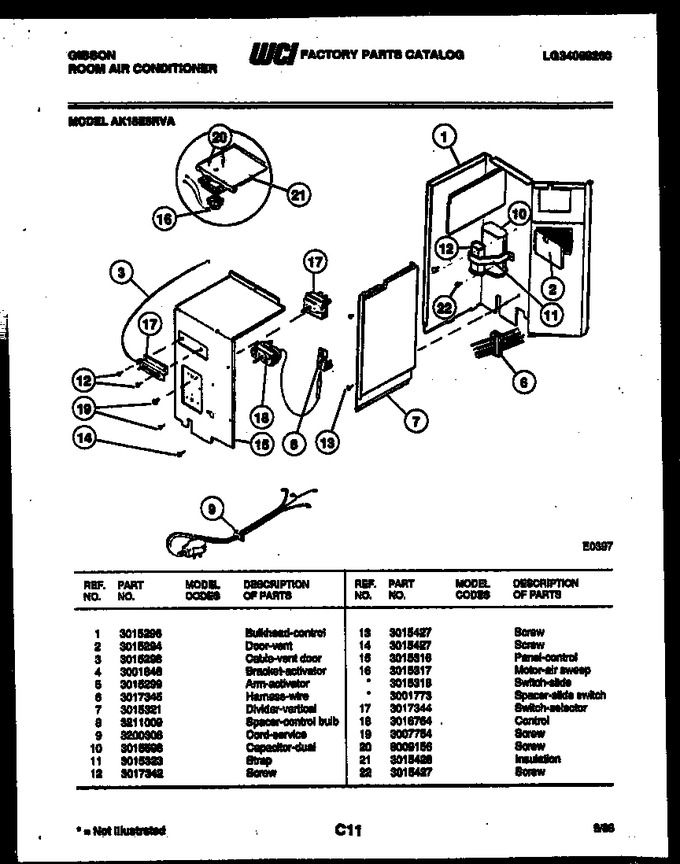

| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 3015294 | Door-vent |
|
- | |||||
| 3 | 3015298 | Cable - Vent Door |
|
- | |||||
| 4 | 3001848 | Bracket-activator |
|
- | |||||
| 5 | 3015299 | Arm-activator |
|
- | |||||
| 6 | 3017345 | Harness-wire |
|
- | |||||
| 7 | 3015321 | Divider - Vertical |
|
- | |||||
| 8 | 3211009 | Spacer - Control Bulb |
|
- | |||||
| 9 | 3200306 | Cord-service |
|
- | |||||
| 10 | 3015596 | Capacitor-dual |
|
- | |||||
| 11 | 3015323 | Strap |
|
- | |||||
| 12 | 3017342 | Screw |
|
- | |||||
| 13 | 3015427 | Screw |
|
- | |||||
| 14 | 3015427 | Screw |
|
- | |||||
| 15 | 3015316 | Panel-control |
|
- | |||||
| 16 | 3015317 | Motor-air Sweep |
|
- | |||||
| 17 | 3017344 | Switch - Selector |
|
$ 166.42 | |||||
| 18 | 3016764 | Control |
|
- | |||||
| 19 | 3007754 | Screw |
|
- | |||||
| 20 | 8009156 | Screw |
|
- | |||||
| 21 | 3015428 | Insulation |
|
- | |||||
| 22 | 3015427 | Screw |
|
- | |||||
| 16A | 3015318 | Switch-slide (non-illustrated) |
|
- | |||||
| 16B | 3001773 | Spacer-slide Switch (non-illustrated) |
|
- |
