02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

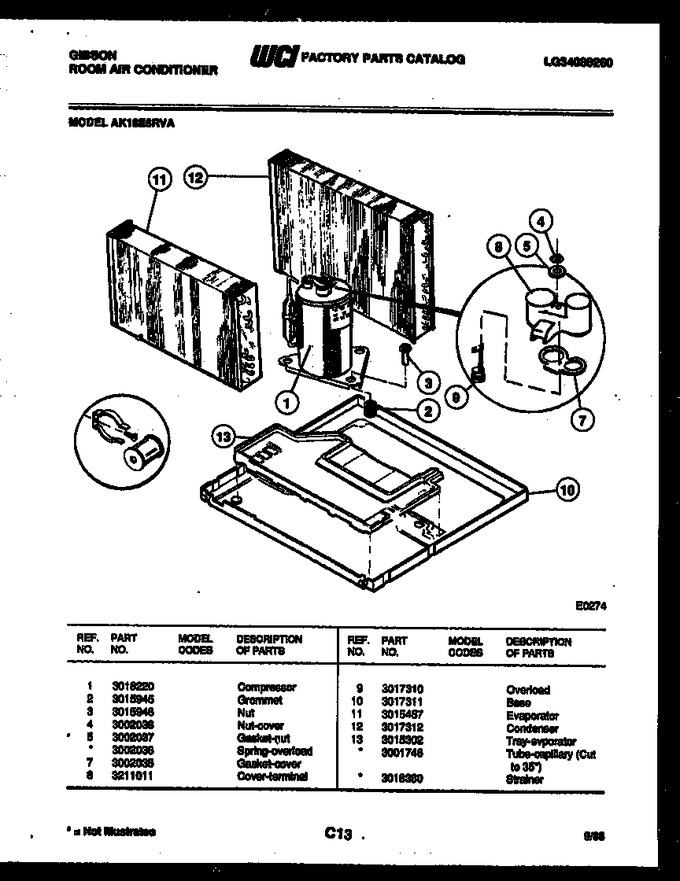

| 1 | 3018220 | Compressor |
|
- | |||||
| 2 | 3015945 | Grommet |
|
- | |||||
| 3 | 3015946 | Nut |
|
- | |||||
| 4 | 3002038 | Nut - Cover |
|
- | |||||
| 5 | 3002037 | Gasket-nut |
|
- | |||||
| 7 | 3002035 | Gasket-cover |
|
- | |||||
| 8 | 3211011 | Cover-terminal |
|
- | |||||
| 9 | 3017310 | Overload |
|
- | |||||
| 10 | 3017311 | Base |
|
- | |||||
| 11 | 3015457 | Evaporator |
|
- | |||||
| 12 | 3017312 | Condenser |
|
- | |||||
| 13 | 3015302 | Tray-evporator |
|
- | |||||
| *11397 | 3001746 | Tube-capillary (cut To 35``) |
|
- | |||||
| *11398 | 3018380 | Strainer |
|
- | |||||
| 5A | 3002036 | Spring-overload (non-illustrated) |
|
- |
