02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

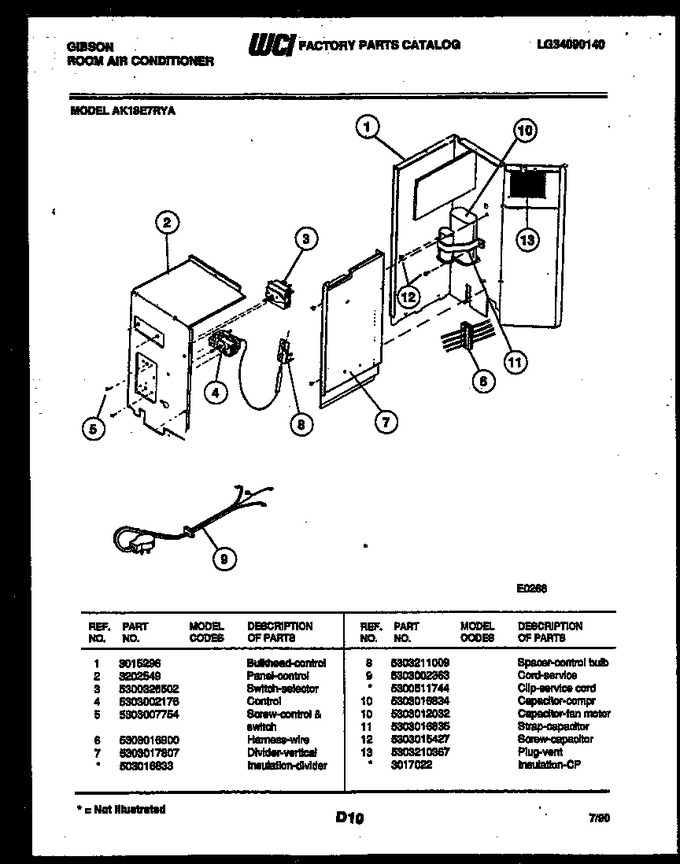

| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 3202549 | Panel - Control |
|
- | |||||
| 3 | 5300326502 | Switch-selector |
|
- | |||||
| 4 | 5303002176 | Control |
|
- | |||||
| 5 | 5303007754 | Screw-control Switch |
|
- | |||||
| 6 | 5303016900 | Harness-wire |
|
- | |||||
| 7 | 5303017807 | Divider - Vertical |
|
- | |||||
| 8 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 9 | 5303002363 | Cord-service |
|
- | |||||
| 10 | 5303012032 | Capacitor-fan Motor |
|
- | |||||
| 10 | 5303016834 | Capacitor Compr |
|
- | |||||
| 11 | 5303016835 | Strap-capacitor |
|
- | |||||
| 12 | 5303015427 | Screw-capacitor |
|
- | |||||
| 13 | 5303210367 | Plug Vent |
|
- | |||||
| *27812 | 3017022 | Insulation-cp |
|
- | |||||
| 7A | 503016833 | Insulation-divider (non-illustrated) |
|
- | |||||
| 9A | 5300511744 | Clip-service Cord (non-illustrated) |
|
- |
