02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

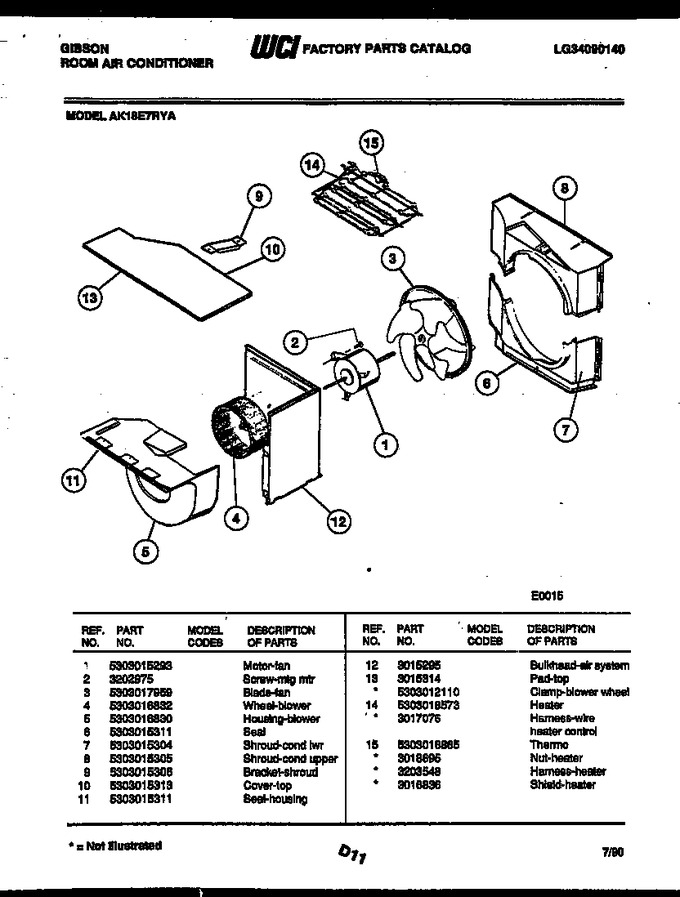

| 1 | 5303015293 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw-mtg Mtr |
|
- | |||||
| 3 | 5303017959 | Blade-fan |
|
- | |||||
| 4 | 5303016832 | Wheel-blower |
|
- | |||||
| 5 | 5303016830 | Housing-blower |
|
- | |||||
| 6 | 5303015311 | Seal |
|
- | |||||
| 7 | 5303015304 | Shroud-cond Lwr |
|
- | |||||
| 8 | 5303015305 | Shroud-cond. Upper |
|
- | |||||
| 9 | 5303015306 | Bracket - Shroud |
|
- | |||||
| 10 | 5303015313 | Cover - Top |
|
- | |||||
| 11 | 5303015311 | Seal - Housing |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 13 | 3015314 | Pad-top |
|
- | |||||
| 14 | 5303018573 | Heater |
|
- | |||||
| 15 | 5303016865 | Thermo |
|
- | |||||
| *27816 | 3018695 | Nut-heater |
|
- | |||||
| *27817 | 3203548 | Harness & Heater |
|
- | |||||
| *27817 | 3016836 | Shield-heater |
|
- | |||||
| 13A | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
$ 8.14 | |||||
| 14A | 3017076 | Harness-wire Heater Control (non-illustrated) |
|
- |
