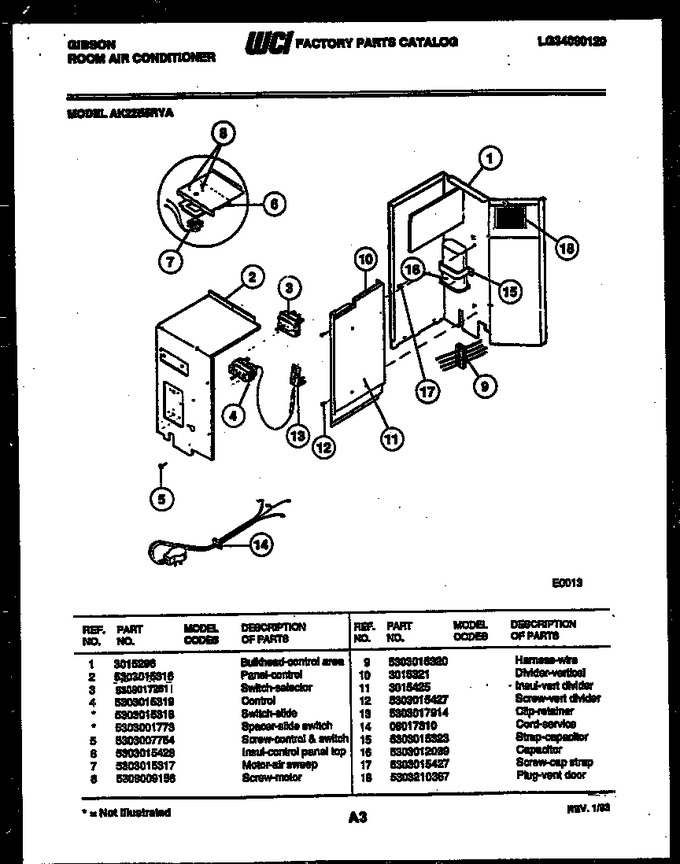

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead-control Area |
|
- | |||||
| 2 | 5303015316 | Panel-control |
|
- | |||||
| 3 | 5308017261 | Switch-selector |
|
- | |||||
| 4 | 5303015319 | Control |
|
- | |||||
| 5 | 5303007754 | Screw-control Switch |
|
- | |||||
| 6 | 5303015428 | Insul-control Panel Top |
|
- | |||||
| 7 | 5303015317 | Motor-air Sweep |
|
- | |||||
| 8 | 5308009156 | Screw-motor |
|
- | |||||
| 9 | 5303015320 | Harness-wire |
|
- | |||||
| 10 | 3015321 | Divider - Vertical |
|
- | |||||
| 11 | 3015425 | Insul - Vert Divider |
|
- | |||||
| 12 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 13 | 5303017914 | Clip-retainer |
|
- | |||||
| 14 | 08017310 | Cord - Service |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303012039 | Capacitor |
|
- | |||||
| 17 | 5303015427 | Screw-cap Strap |
|
- | |||||
| 18 | 5303210367 | Plug-vent Door |
|
- | |||||
| 4A | 5303015318 | Switch-slide (non-illustrated) |
|
- | |||||
| 4B | 5303001773 | Spacer-slide Switch (non-illustrated) |
|
- |
