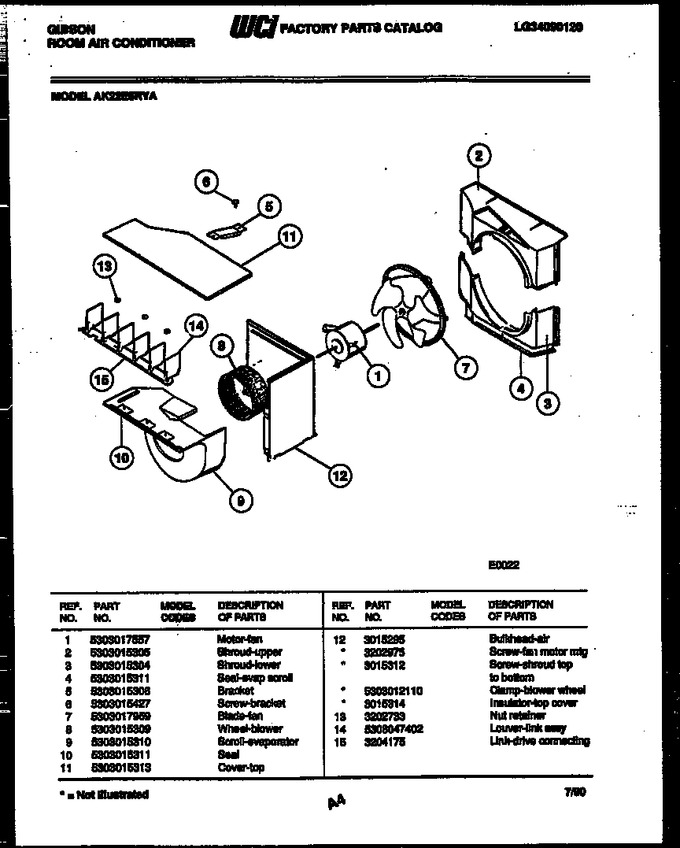

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017557 | Motor - Fan |
|
- | |||||
| 2 | 5303015305 | Shroud - Upper |
|
- | |||||
| 3 | 5303015304 | Shroud - Lower |
|
- | |||||
| 4 | 5303015311 | Seal-evap. Scroll |
|
- | |||||
| 5 | 5303015306 | Bracket |
|
- | |||||
| 6 | 5303015427 | Screw-bracket |
|
- | |||||
| 7 | 5303017959 | Blade-fan |
|
- | |||||
| 8 | 5303015309 | Wheel-blower |
|
- | |||||
| 9 | 5303015310 | Scroll-evaporator |
|
- | |||||
| 10 | 5303015311 | Seal |
|
- | |||||
| 11 | 5303015313 | Cover - Top |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air |
|
- | |||||
| 13 | 3202733 | Nut Retainer |
|
- | |||||
| 14 | 5308047402 | Louver-link Assy. |
|
- | |||||
| 15 | 3204175 | Link-drive-connecting |
|
- | |||||
| 12A | 3202975 | Screw-fan Motor Mtg (non-illustrated) |
|
- | |||||
| 12B | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 12C | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
$ 8.14 | |||||
| 12D | 3015314 | Insulator-top Cover (non-illustrated) |
|
- |
