02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

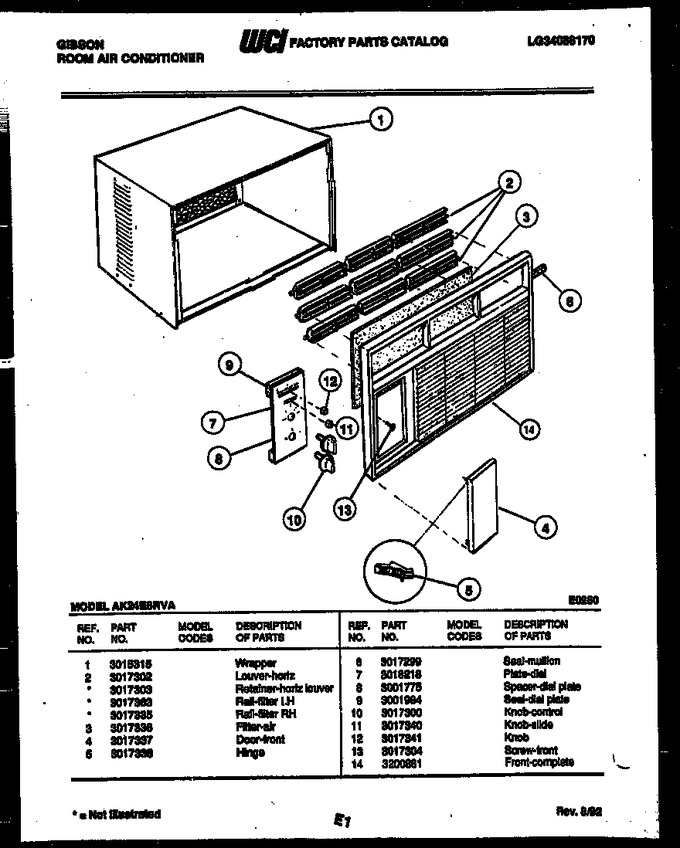

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015315 | Wrapper |
|
- | |||||
| 2 | 3017302 | Louver-horiz |
|
- | |||||
| 3 | 3017336 | Filter-air |
|
- | |||||
| 4 | 3017337 | Door-front |
|
- | |||||
| 5 | 3017338 | Hinge |
|
- | |||||
| 6 | 3017299 | Seal Mullion |
|
- | |||||
| 7 | 3018218 | Plate-dial |
|
- | |||||
| 8 | 3001775 | Spacer-dial Plate |
|
- | |||||
| 9 | 3001984 | Seal-dial Plate |
|
- | |||||
| 10 | 3017300 | Knob-control |
|
- | |||||
| 11 | 3017340 | Knob-slide |
|
- | |||||
| 12 | 3017341 | Knob |
|
- | |||||
| 13 | 3017304 | Screw-front |
|
- | |||||
| 14 | 3200861 | Front-complete |
|
- | |||||
| 2A | 3017303 | Retainer-horiz Louver (non-illustrated) |
|
- | |||||
| 2B | 3017363 | Rail-filter Lh (non-illustrated) |
|
- | |||||
| 2C | 3017335 | Rail-filter Rh (non-illustrated) |
|
- |
