02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

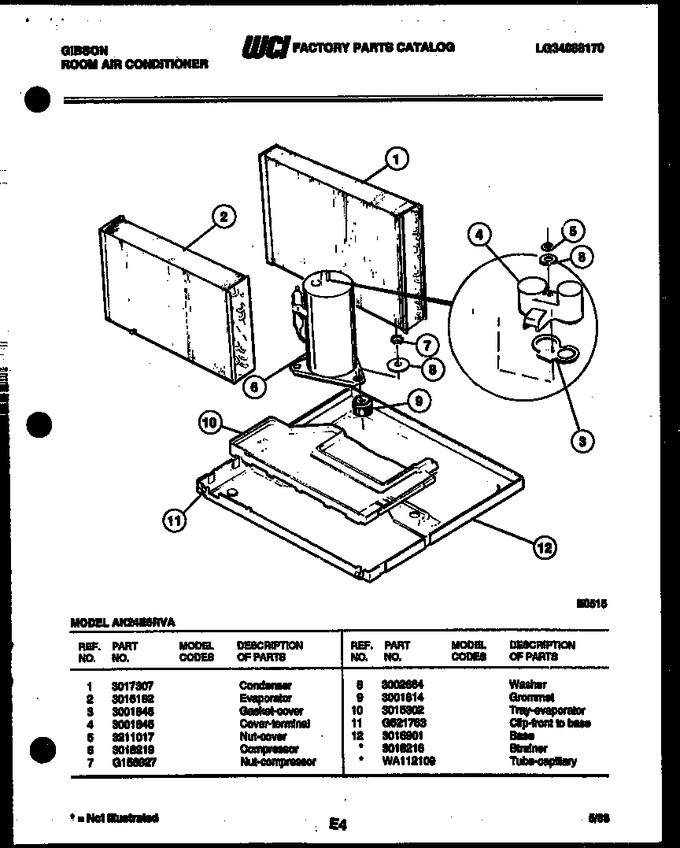

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017307 | Condenser |
|
- | |||||
| 2 | 3016182 | Evaporator |
|
- | |||||
| 3 | 3001846 | Gasket-cover |
|
- | |||||
| 4 | 3001845 | Cover-terminal |
|
- | |||||
| 5 | 3211017 | Nut-cover |
|
- | |||||
| 6 | 3018219 | Compressor |
|
- | |||||
| 7 | G156927 | Nut-compressor |
|
- | |||||
| 8 | 3002664 | Washer |
|
- | |||||
| 9 | 3001814 | Grommet |
|
- | |||||
| 10 | 3015302 | Tray - Evaporator |
|
- | |||||
| 11 | G521763 | Clip-front To Base |
|
- | |||||
| 12 | 3016901 | Base |
|
- | |||||
| *89390 | WA112109 | Tube-capillary |
|
- | |||||
| *89390 | 3018216 | Strainer |
|
- |
