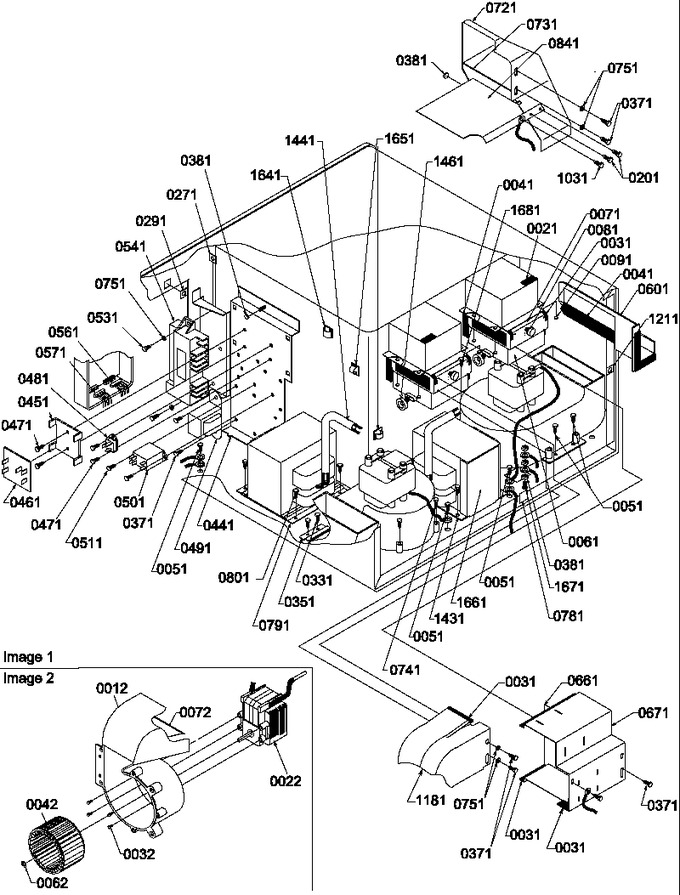

03 - Electrical Components/blower
04 - Shelf/rear Access Panel
05 - Stirrer/light
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 45559P01 | Housing, Blower |
|
- | |||||
| 21 | 54140P01 | Pad-screw |
|
- | |||||
| 22 | R0150121 | Kit, Blower Motor |
|
- | |||||
| 31 | A3030302 | Gasket |
|
- | |||||
| 32 | M1D888 | Screw K |
|
- | |||||
| 41 | A3030361 | Gasket |
|
- | |||||
| 42 | 36300P01 | Wheel, Blower M35d39 |
|
- | |||||
| 51 | 5078-CC | Screw |
|
- | |||||
| 61 | 10794401 | Magnetron |
|
- | |||||
| 62 | Y00000000 | See Note E-ring .219 Shaft |
|
- | |||||
| 71 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 72 | M65D277 | Housing Blower, Kit |
|
- | |||||
| 81 | M0251717 | Screw |
|
- | |||||
| 91 | 5014-J | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 201 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 271 | 42365P01 | U-clip |
|
- | |||||
| 291 | 5072-D | No.8-32 Captive Nut(25) |
|
- | |||||
| 331 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 351 | 45537P01 | Clip, Blower Mtg |
|
- | |||||
| 371 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 381 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 441 | 10791901 | Panel, Component |
|
- | |||||
| 471 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 481 | D7681501 | Triac |
|
$ 44.05 | |||||
| 531 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.20 | |||||
| 541 | 4002006801 | Svc Interlock Switch Asy |
|
- | |||||
| 561 | 12150101 | Harness-oven |
|
- | |||||
| 571 | 10902921 | Wire-jumper |
|
- | |||||
| 601 | 45753P01 | Transition-cav Exh Fs-10 |
|
- | |||||
| 661 | 45752P03 | Duct Divider |
|
- | |||||
| 671 | 45751P03 | Duct, Housing |
|
- | |||||
| 721 | 45407P01 | M65d345 Duct, Air |
|
- | |||||
| 731 | 45402P01 | M65d346 Divider Air |
|
- | |||||
| 741 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.17 | ||||
| 751 | Y00000000 | See Note No.8 Flat Washer |
|
- | |||||
| 781 | M0110505 | Clip-cable |
|
- | |||||
| 791 | 45602P01 | Clip, Transformer |
|
- | |||||
| 801 | 5018-JJ | No.10 T X 3/8`` Screw |
|
- | |||||
| 841 | 46762P01 | Deflector-air M65d344 |
|
- | |||||
| 1031 | M1D888 | Screw K |
|
- | |||||
| 1181 | 46385P01 | Duct Assembly |
|
- | |||||
| 1211 | 5147-ZZ | U-clip |
|
- | |||||
| 1431 | 10788608 | Transformer-hv |
|
- | |||||
| 1441 | 12075801 | Sleeve |
|
- | |||||
| 1461 | 44780P01 | Toroid (arc Suppressor) |
|
- | |||||
| 1641 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 1651 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 1661 | 12065001 | Barrier-thermal |
|
- | |||||
| 1671 | M0200718 | Screw-mach |
|
- | |||||
| 1681 | M0218136 | Screw |
|
- |
