01 - Controls
02 - Door
03 - Electrical Components/blower
04 - Shelf/rear Access Panel

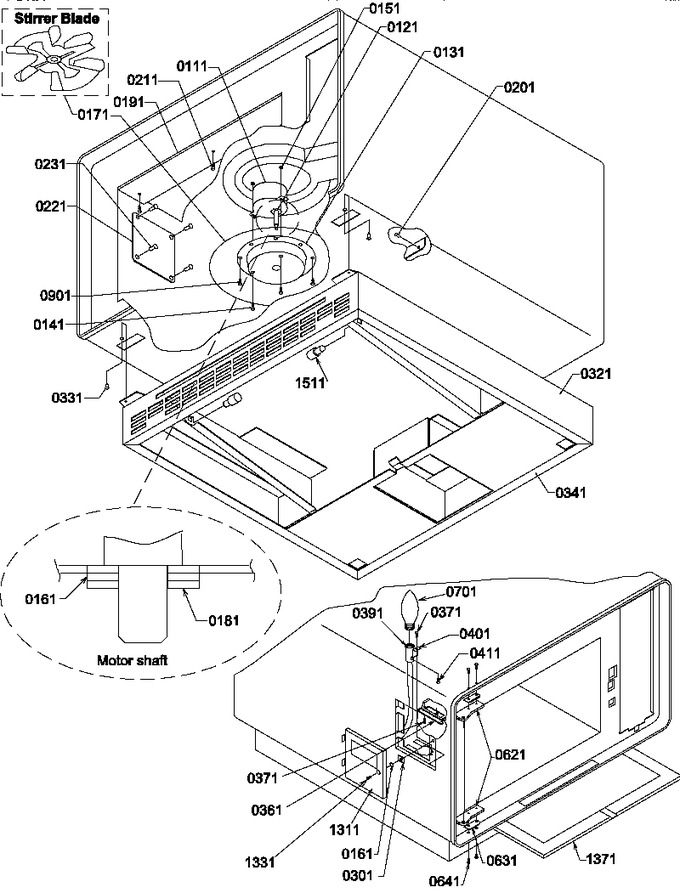

05 - Stirrer/light
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | 2001000501 | Motor-stirrer |
|
- | |||||
| 121 | 24597P01 | Gasket |
|
- | |||||
| 131 | 45437P01 | Support Mtr |
|
- | |||||
| 141 | M0234003 | Screw |
|
- | |||||
| 151 | 5010-X | No.4-40 Twin Whiz-lock Nut |
|
- | |||||
| 161 | 32383P01 | Wshr-rubber |
|
- | |||||
| 171 | 10824805 | Kit, Stirrer Blade |
|
- | |||||
| 181 | WP3195558 | Pushnut (Replaces: 5147-V) |
|
$ 7.68 | |||||
| 191 | 45422P01 | Stirrer Cover |
|
- | |||||
| 201 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 211 | Y00000000 | See Note Speed-clinch |
|
- | |||||
| 221 | 2570000202 | Lamp Lens |
|
- | |||||
| 231 | 42192P01 | Rivet-plastcx |
|
- | |||||
| 301 | M0288120 | Speed Nut |
|
- | |||||
| 321 | R0163258 | Kit, Base |
|
- | |||||
| 331 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 341 | 10732503 | Gasket,basepan |
|
- | |||||
| 361 | 4520500504 | Fire Sensor Assy |
|
- | |||||
| 371 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.04 | ||||
| 391 | 46534P01 | Light Holder |
|
- | |||||
| 401 | 10825001 | Bracket |
|
- | |||||
| 411 | 5064-CC | Screw-tf |
|
- | |||||
| 621 | 4180032601 | Assy, Hinge |
|
- | |||||
| 631 | 45540P01 | Shim-hinge |
|
- | |||||
| 641 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 901 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.26 | ||||
| 1311 | 10785601 | Cover Light (ss) |
|
- | |||||
| 1331 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 12.62 | ||||
| 1511 | 5571173001 | Standoff, Filter Guide |
|
- |
