02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

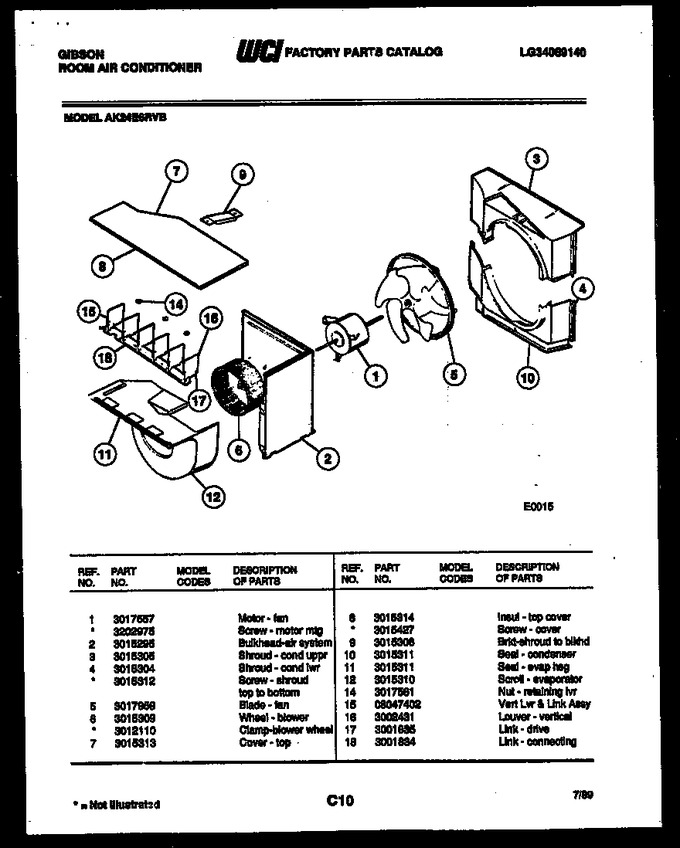

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017557 | Motor-fan |
|
- | |||||
| 2 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 3 | 3015305 | Shroud - Cond Uppr |
|
- | |||||
| 4 | 3015304 | Shroud-cond Lwr |
|
- | |||||
| 5 | 3017959 | Blade-fan |
|
- | |||||
| 6 | 3015309 | Wheel-blower |
|
- | |||||
| 7 | 3015313 | Cover-top |
|
- | |||||
| 8 | 3015314 | Insul - Top Cover |
|
- | |||||
| 9 | 3015306 | Brkt-shroud To Blkhd |
|
- | |||||
| 10 | 3015311 | Seal-condenser |
|
- | |||||
| 11 | 3015311 | Seal - Evap Hsg |
|
- | |||||
| 12 | 3015310 | Scroll - Evaporator |
|
- | |||||
| 14 | 3017561 | Nut - Retaining Lvr |
|
- | |||||
| 15 | 08047402 | Vert Lvr & Link Assy |
|
- | |||||
| 16 | 3002431 | Louver-vertical |
|
- | |||||
| 17 | 3001835 | Link-drive |
|
- | |||||
| 18 | 3001834 | Link-connecting |
|
- | |||||
| 1A | 3202975 | Screw-motor Mtg (non-illustrated) |
|
- | |||||
| 4A | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 6A | 3012110 | Clamp-blower Wheel (non-illustrated) |
|
- |
