02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

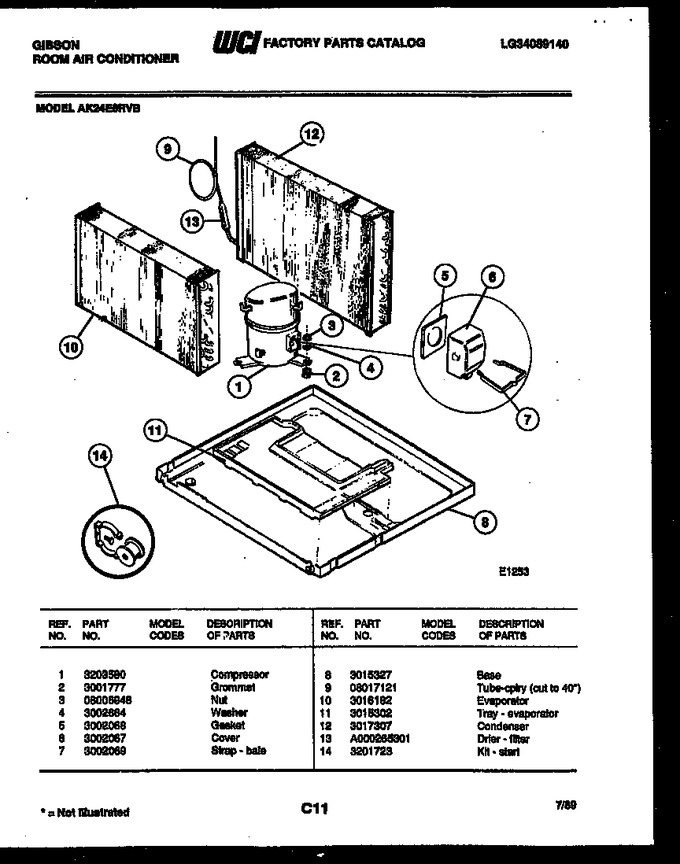

| 1 | 3203580 | Compressor |
|
- | |||||
| 2 | 3001777 | Grommet |
|
- | |||||
| 3 | 08006948 | Nut |
|
- | |||||
| 4 | 3002664 | Washer |
|
- | |||||
| 5 | 3002068 | Gasket |
|
- | |||||
| 6 | 3002067 | Cover |
|
- | |||||
| 7 | 3002069 | Strap-bale |
|
- | |||||
| 8 | 3015327 | Base |
|
- | |||||
| 9 | 08017121 | Tube-cplry (cut To 40``) |
|
- | |||||
| 10 | 3016182 | Evaporator |
|
- | |||||
| 11 | 3015302 | Tray - Evaporator |
|
- | |||||
| 12 | 3017307 | Condenser |
|
- | |||||
| 13 | A000265301 | Drier-filter |
|
- | |||||
| 14 | 3201723 | Kit-start |
|
- | |||||
| 8A | 3015427 | Screw-cover (non-illustrated) |
|
- |
