02 - Backguard
03 - Door Parts

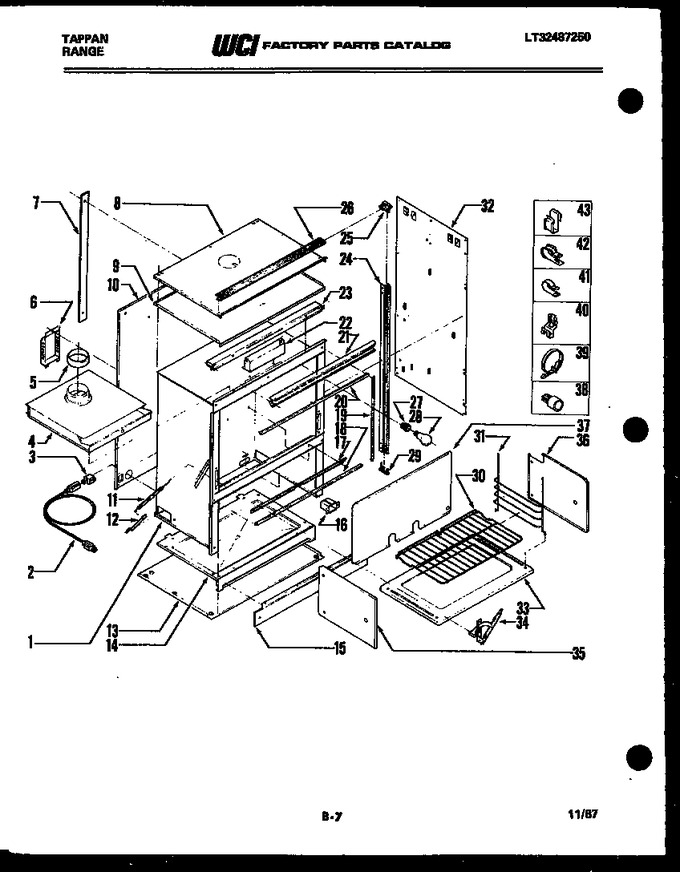

04 - Body Parts
05 - Gas Control
06 - Broiler Drawer And Door Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI57A8730 | Body-main (n/a) |
|
- | |||||
| 2 | 171T021P08 | Cord-power Supply |
|
- | |||||
| 3 | 558T041P01 | Plug-discon.-male (lot 3-5) |
|
- | |||||
| 3 | 558T034P01 | Plug-discon.-male (lot 1, 2) |
|
- | |||||
| 6 | 174T220F01 | Covr-igntr (lot 1-3) |
|
- | |||||
| 7 | 740T487F0118 | Trim-filler Strip (lot 1-3) |
|
- | |||||
| 8 | 812T008F02 | Wrappr-tp-outer |
|
- | |||||
| 9 | 812T007F01 | Wrappr-tp-inner |
|
- | |||||
| 9 | 812T007F0318 | Wrappr-tp-inner (lot 4-5) |
|
- | |||||
| 10 | 805T013W0318 | Wrappr-back-outer (lot 4, 5) |
|
- | |||||
| 10 | 805T013W0218 | Wrappr-back-outer (lot 1-3) |
|
- | |||||
| 11 | 675T041P07 | Spring-dr L & R (2) |
|
- | |||||
| 12 | 072T476F03 | Brkt-spring Adj. L & R (2) |
|
- | |||||
| 13 | 036T034F04 | Base-main |
|
- | |||||
| 14 | 060T006W0487 | Btm-sub (lot 3, 4) |
|
- | |||||
| 14 | 060T006W0486 | Bottom-sub |
|
- | |||||
| 14 | 060T006W0489 | Btm-sub (lot 1, 2) |
|
- | |||||
| 15 | 740T455F0218 | Trim-lwr (lot 4, 5) |
|
- | |||||
| 15 | 740T455F01 | Trim-lwr (lot 1-3) |
|
- | |||||
| 16 | 750T207F01 | Tube-igntr (lot 1-3) |
|
- | |||||
| 17 | 655T142F07 | Shield-heat |
|
- | |||||
| 18 | 647T069P07 | Seal-dr-tp Broilr Black |
|
- | |||||
| 19 | 647T081P03 | Seal-dr-side-bake Oven (2) |
|
- | |||||
| 20 | 647T081P04 | Seal-dr-top-bake Oven |
|
- | |||||
| 21 | 740T411P04 | Trim-frnt (lot 2-5) |
|
- | |||||
| 21 | 740T411P01 | Trim-frnt (lot 1) |
|
- | |||||
| 22 | 252T019W01 | Flue-bx-vertical |
|
- | |||||
| 23 | 252T020W01 | Flue-bx-horz. |
|
- | |||||
| 24 | 740T328P16 | Trim-side Rh |
|
- | |||||
| 24 | 740T328P15 | Trim-side Lh |
|
- | |||||
| 25 | 123T064P04 | Cap-cornr Tp/l & R (2) |
|
- | |||||
| 26 | 740T327P04 | Trim-tp (lot 4-5) |
|
- | |||||
| 26 | 740T327P03 | Trim-tp (lot 1-3) |
|
- | |||||
| 27 | 662T012P12 | Socket-ovn Light (lot 1) |
|
- | |||||
| 27 | 662T024P01 | Socket-ovn Light (lot 2-5) |
|
- | |||||
| 28 | 374T018P05 | Bulb-ovn Light (lot 1-5) |
|
- | |||||
| 29 | 123T065P04 | Cap-end Rh-lower |
|
- | |||||
| 29 | 123T065P03 | Cap-end Lh-lower |
|
- | |||||
| 30 | 591T038P02 | Rack-oven (2) |
|
- | |||||
| 31 | 280T016P01 | Glide-ovn Rack (2) |
|
- | |||||
| 32 | 809T010F0918 | Wrappr-sd L & R - Outer (2) |
|
- | |||||
| 33 | 058T015F1089 | Btm-ovn (lot 1, 2) |
|
- | |||||
| 33 | 058T015F1087 | Btm-ovn (lot 3, 4) |
|
- | |||||
| 33 | 058T015F1086 | Oven Bottom |
|
- | |||||
| 34 | 117T013S14 | Cam-dr Rh-upr (lot 2-5) |
|
- | |||||
| 34 | 117T013S13 | Cam-dr Lh-upr (lot 2-5) |
|
- | |||||
| 34 | 117T013S08 | Cam-dr Rh-upr (lot 1) |
|
- | |||||
| 34 | 117T013S07 | Cam-dr Lh-upr (lot 1) |
|
- | |||||
| 35 | 382T023F0893 | Liner-side Lh-removbl-optional |
|
- | |||||
| 36 | 382T023F1193 | Liner-side Rh-removbl Optional |
|
- | |||||
| 37 | 379T043F0393 | Liner-back-remvble Optional |
|
- | |||||
| 38 | 241T017P97 | Fastener (2) |
|
- | |||||
| 39 | 241T017P106 | Fstnr-cable Ty-rap |
|
- | |||||
| 40 | 145T025P01 | Clip, Thermo Bulb (2) |
|
$ 1.76 | |||||
| 41 | 241T017P203 | Fstnr-clmp (lot 1-3) |
|
- | |||||
| 42 | 241T017P128 | Fstnr-clmp Pwr Cord |
|
- | |||||
| 43 | 241T003P01 | Fstnr-cabl Clamp |
|
- | |||||
| *81339 | 711T047P93 | Term. C8 (lot 1) |
|
- | |||||
| *81340 | 241T014P01 | Fstnr 8a U-type (lot 2-4) (2) |
|
- | |||||
| *81340 | 241T017P02 | Fstnr 8a J-type (lot 1) (2) |
|
- | |||||
| *81341 | 636T090P35 | Scrw 8ab X 2 1/4`` Ph. Ov. W/ No. 6 Hd.-ovn To Cab. Mtg ( |
|
- | |||||
| *81342 | 328T015P115 | Insul 2 1/2 X 19 X 43 1/2 Wool-tp/bk (lot 2-5) |
|
- | |||||
| *81342 | 328T015P91 | Insul. 2 1/2 X 19 X 43 1/2 Wool-tp/back (lot 1) |
|
- | |||||
| *81343 | 328T015P92 | Insul. 2 1/2 X 21 X 71`` Wool Wrpr |
|
- | |||||
| *81345 | 560T691P223 | Ownr Guide (lot 1) |
|
- | |||||
| *81346 | 560T691P238 | Ownr Guide (lot 2-5) |
|
- | |||||
| 10A | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Wrapr Mtg (non-illustrated) |
|
- | |||||
| 11A | 660T037P01 | Sleev-dr Spring L & R (2) (non-illustrated) |
|
- | |||||
| 12A | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Brkt Mtg (2) (non-illustrated) |
|
- | |||||
| 23A | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Flue Bx Mtg (non-illustrated) |
|
- | |||||
| 26A | 636T090P34 | Scrw 8a X 3/8`` Ph. Ov. W/ No. 6 Hd. Cap, Trim Mtg. (non-illustrated) |
|
- | |||||
| 34A | 355T588S01 | Kit-dr Adjustmnt (non-illustrated) |
|
- | |||||
| 34B | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Cam Mtg (4) (non-illustrated) |
|
- | |||||
| 6A | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Cover Mtg. (non-illustrated) |
|
- | |||||
| 7A | 636T090P47 | Scrw 8a X 3/8`` Ph. Tr. Hd-trim Mtg (2) (non-illustrated) |
|
- |
