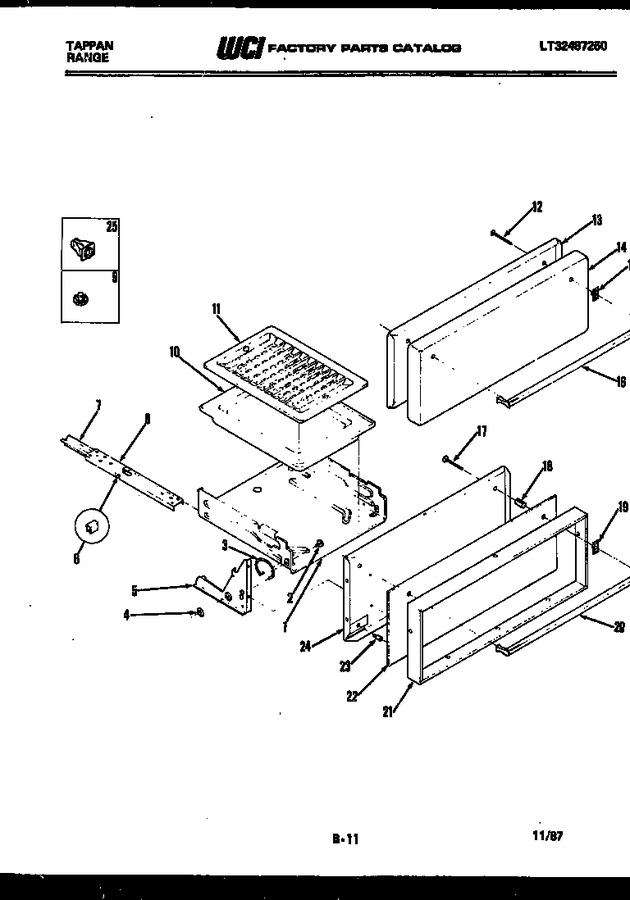

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205T004W0187 | Bdy-broilr (lot 3, 4) |
|
- | |||||
| 1 | 205T004W0186 | Body-broilr (lot 5) |
|
- | |||||
| 1 | 205T004W0189 | Bdy-broilr (lot 1, 2) |
|
- | |||||
| 2 | 550T041P01 | Pin-hng Mtg (2) |
|
- | |||||
| 3 | 675T079P01 | Sprng-lh-c-type |
|
- | |||||
| 3 | 675T079P02 | Sprng-rh-c-type |
|
- | |||||
| 4 | 241T017P148 | Fastnr-push Nut 1/4`` (2) |
|
- | |||||
| 5 | 072T659F01 | Brackt-hng Lh |
|
- | |||||
| 5 | 072T659F02 | Brackt-hng Rh |
|
- | |||||
| 5 | 072T659F0308 | Bracket, Hinge Broiler (lh) |
|
- | |||||
| 5 | 072T659F0408 | Bracket, Hinge Broiler (rh) |
|
- | |||||
| 6 | 106T028P01 | Button, Glide (3) |
|
- | |||||
| 7 | 136T281F05 | Chanl-glide-lwr (lot 4, 5) |
|
- | |||||
| 7 | 136T281F02 | Chanl-glide-lwr (lot 1-3) |
|
- | |||||
| 8 | 136T282F04 | Chanl-glide-upr (lot 4-5) |
|
- | |||||
| 8 | 136T282F02 | Chanl-glide-upr (lot 1-3) |
|
- | |||||
| 9 | 106T027P02 | Button, Glide |
|
- | |||||
| 10 | 539T010F0189 | Pan-broilr (lot 1, 2) |
|
- | |||||
| 10 | 539T010F0187 | Pan-broilr (lot 3, 4) |
|
- | |||||
| 10 | 539T010F0186 | Pan-broilr (lot 5) |
|
- | |||||
| 11 | 804049 | Door A (solid) (lot 1-4) |
|
- | |||||
| 11 | 804046 | Door A (solid) (lot 5) |
|
- | |||||
| 11 | 319T011F0386 | Insert-broilr Pan (lot 5) |
|
- | |||||
| 11 | 319T011F0389 | Insert-broilr Pan (lot 1, 2) |
|
- | |||||
| 11 | 319T011F0387 | Insert-broilr Pan (lot 3, 4) |
|
- | |||||
| 12 | 636T138P01 | Scrw 10-24 X 1-15/16`` Ph. Fl. Hd. Wsh. Hndl Mtg. (2) |
|
- | |||||
| 13 | 381T085F0389 | Liner (lot 1, 2) |
|
- | |||||
| 13 | 381T085F0386 | Liner (lot 5) |
|
- | |||||
| 13 | 381T085F0387 | Liner (lot 3, 4) |
|
- | |||||
| 14 | 517T004W1057 | Panel-fr. Avoc. |
|
- | |||||
| 14 | 517T004W1045 | Panel-coffee |
|
- | |||||
| 14 | 517T004W1066 | Panel-h. Weat |
|
- | |||||
| 14 | 517T004W1023 | Panel-almond |
|
- | |||||
| 14 | 517T004W1000 | Panel-white |
|
- | |||||
| 15 | 665T127P01 | Spacr-hndl W/post (2) |
|
- | |||||
| 16 | 804053 | Door B - Blk Gls (lot 1-4) |
|
- | |||||
| 16 | 296T055P04 | Handle |
|
- | |||||
| 16 | 804056 | Door B - Blk Gls (lot 5) |
|
- | |||||
| 17 | 636T138P01 | Scrw 10-24 X 1-15/16`` Ph. Fl. Hd. Wsh. Hndl Mtg. (2) |
|
- | |||||
| 18 | 665T131P01 | Spacr-tube (lot 1-3) |
|
- | |||||
| 18 | 665T131P02 | Spacr-tube (lot 4, 5) |
|
- | |||||
| 19 | 665T127P01 | Spacr-hndl W/post (2) |
|
- | |||||
| 20 | 296T055P09 | Handle |
|
- | |||||
| 21 | 740T483P10 | Trim-frame (lot 4, 5) |
|
- | |||||
| 21 | 740T483P04 | Trim Frame (lot 1-3) |
|
- | |||||
| 22 | 276T102P01 | Glass |
|
- | |||||
| 23 | 241T017P175 | Fastnr-spact-nylon 1/2`` (2) |
|
- | |||||
| 24 | 381T085W0286 | Liner (lot 5) |
|
- | |||||
| 24 | 381T085W0289 | Liner (lot 1, 2) |
|
- | |||||
| 24 | 381T085W0287 | Liner (lot 3, 4) |
|
- | |||||
| 25 | 241T017P240 | Fastnr-spacr-nylon 3/32`` (lot 4, 5) (5) |
|
- | |||||
| 25 | 241T017P174 | Fastnr-spacr-nylon 1/16`` (lot 1-3) (5) |
|
- | |||||
| *81407 | 636T069P11 | Scrw 8a X 1/2`` Ph. Ov. W/no. 6 Hd-dr Assy (lot 1-3) (3) |
|
- | |||||
| *81408 | 636T143P01 | Screw |
|
- | |||||
| *81409 | 636T139P01 | Scrw 8-18 X 1/2`` Ph. Wsh Hd. Spc. Dr. Assy (3) |
|
- | |||||
| 11A | 636T069P07 | Scrw 8a X 1/2`` Ph. Tr. Hd. Broilr Assy (4) (non-illustrated) |
|
- | |||||
| 11B | 636T090P05 | Scrw 8a X 1/2`` Ph. Tr. Hd. W/w-broilr Assy (4) (non-illustrated) |
|
- | |||||
| 13A | 328T015P22 | Insul. 1 1/2 X 9 1/4 X 22 Wool (non-illustrated) |
|
- | |||||
| 16A | 636T046P02 | Scrw 8a X 3/8`` Ph. Tr. Hd.-dr Assy (3) (non-illustrated) |
|
- | |||||
| 24A | 328T015P22 | Insul. 1 1/2 X 9 1/4 X 22 Wool (non-illustrated) |
|
- |
