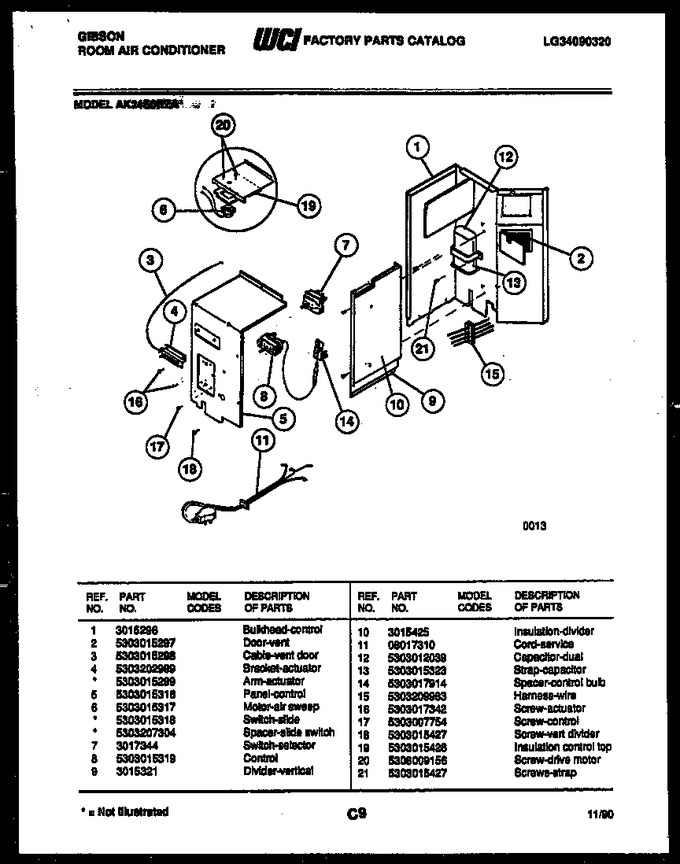

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead - Control		Appelez-nous	-
2	5303015297		Door-vent		Appelez-nous	-
3	5303015298		Cable - Vent Door		Appelez-nous	-
4	5303202999		Bracket-actuator		Appelez-nous	-
5	5303015316		Panel-control		Appelez-nous	-
6	5303015317		Motor-air Sweep		Appelez-nous	-
7	3017344		Switch - Selector				$ 166.42
8	5303015319		Control		Appelez-nous	-
9	3015321		Divider - Vertical		Appelez-nous	-
10	3015425		Insulation-divider		Appelez-nous	-
11	08017310		Cord - Service		Appelez-nous	-
12	5303012039		Capacitor Dual		Appelez-nous	-
13	5303015323		Strap-capacitor		Appelez-nous	-
14	5303017914		Spacer-control Bulb		Appelez-nous	-
15	5303209983		Harness-wire		Appelez-nous	-
16	5303017342		Screw-actuator		Appelez-nous	-
17	5303007754		Screw-control		Appelez-nous	-
18	5303015427		Screw-vert Divider		Appelez-nous	-
19	5303015428		Insulation Control Top		Appelez-nous	-
20	5308009156		Screw-drive Motor		Appelez-nous	-
21	5303015427		Screws-strap		Appelez-nous	-
4A	5303015299		Arm-actuator (non-illustrated)		Appelez-nous	-
6A	5303015318		Switch-slide (non-illustrated)		Appelez-nous	-
6B	5303207304		Spacer-slide Switch (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
