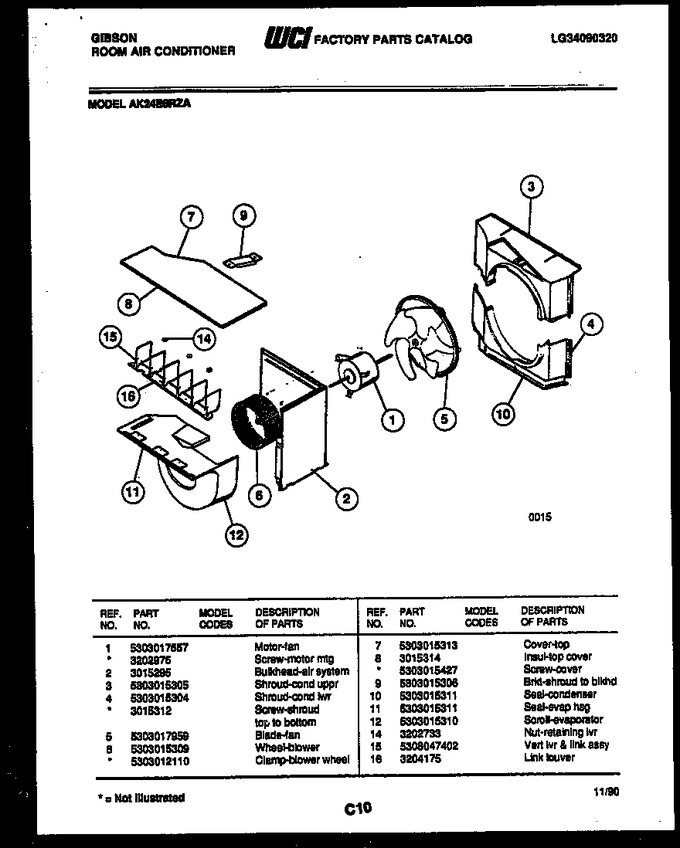

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017557 | Motor - Fan |
|
- | |||||
| 2 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 3 | 5303015305 | Shroud-cond Uppr |
|
- | |||||
| 4 | 5303015304 | Shroud-cond Lwr |
|
- | |||||
| 5 | 5303017959 | Blade-fan |
|
- | |||||
| 6 | 5303015309 | Wheel-blower |
|
- | |||||
| 7 | 5303015313 | Cover - Top |
|
- | |||||
| 8 | 3015314 | Insul - Top Cover |
|
- | |||||
| 9 | 5303015306 | Brkt-shroud To Blkhd |
|
- | |||||
| 10 | 5303015311 | Seal-condenser |
|
- | |||||
| 11 | 5303015311 | Seal-evap Hsg |
|
- | |||||
| 12 | 5303015310 | Scroll-evaporator |
|
- | |||||
| 14 | 3202733 | Nut-retaining Lvr |
|
- | |||||
| 15 | 5308047402 | Vert Lvr & Link Assy |
|
- | |||||
| 16 | 3204175 | Link - Louver |
|
- | |||||
| 1A | 3202975 | Screw-motor Mtg (non-illustrated) |
|
- | |||||
| 4A | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- | |||||
| 6A | 5303012110 | Clamp Blower Wheel (non-illustrated) |
|
$ 8.14 | |||||
| 8A | 5303015427 | Screw-cover (non-illustrated) |
|
- |
