02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

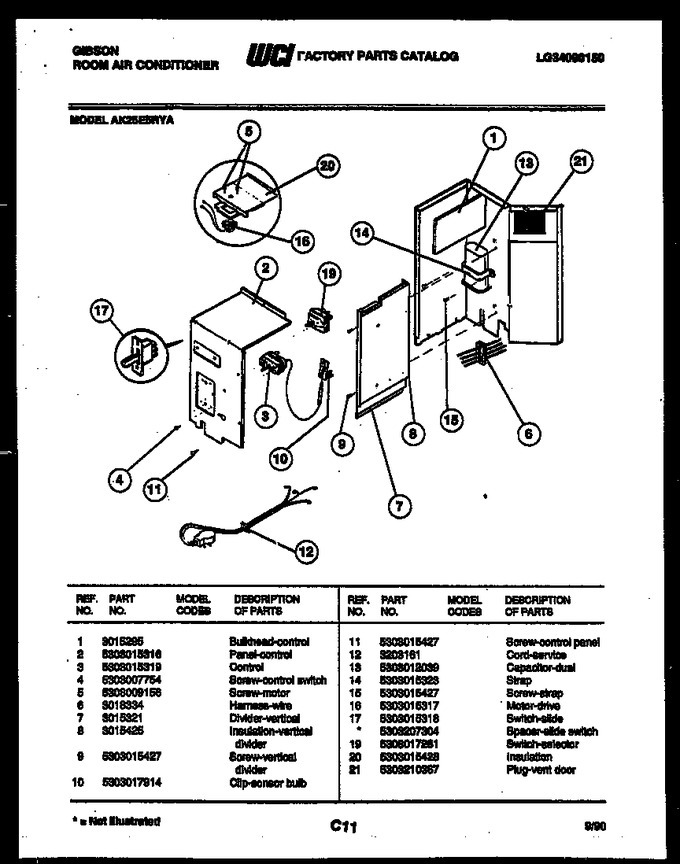

| 1 | 3015295 | Bulkhead-control |
|
- | |||||
| 2 | 5303015316 | Panel-control |
|
- | |||||
| 3 | 5303015319 | Control |
|
- | |||||
| 4 | 5303007754 | Screw-control Switch |
|
- | |||||
| 5 | 5308009156 | Screw-motor |
|
- | |||||
| 6 | 3018334 | Harness - Wire |
|
- | |||||
| 7 | 3015321 | Divider - Vertical |
|
- | |||||
| 8 | 3015425 | Insulation - Vertical Divider |
|
- | |||||
| 9 | 5303015427 | Screw - Vertical Divider |
|
- | |||||
| 10 | 5303017914 | Clip-sonsor Bulb |
|
- | |||||
| 11 | 5303015427 | Screw-control Panel |
|
- | |||||
| 12 | 3203161 | Cord - Service |
|
- | |||||
| 13 | 5303012039 | Capacitor Dual |
|
- | |||||
| 14 | 5303015323 | Strap |
|
- | |||||
| 15 | 5303015427 | Screw-strap |
|
- | |||||
| 16 | 5303015317 | Motor-drive |
|
- | |||||
| 17 | 5303015318 | Switch-slide |
|
- | |||||
| 19 | 5308017261 | Switch-selector |
|
- | |||||
| 20 | 5303015428 | Insulation |
|
- | |||||
| 21 | 5303210367 | Plug-vent Door |
|
- | |||||
| 17A | 5303207304 | Spacer-slide Switch (non-illustrated) |
|
- |
