New Model Search:

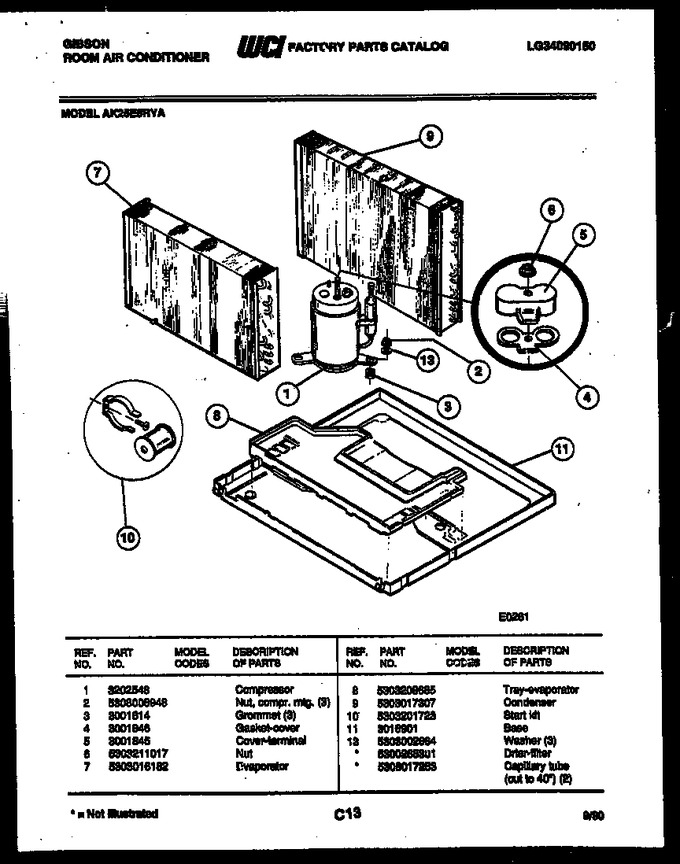

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202548 | Compressor |
|
- | |||||
| 2 | 5308006948 | Nut, Compr. Mtg. (3) |
|
- | |||||
| 3 | 3001814 | Grommet (3) |
|
- | |||||
| 4 | 3001846 | Gasket-cover |
|
- | |||||
| 5 | 3001845 | Cover-terminal |
|
- | |||||
| 6 | 5303211017 | Nut |
|
- | |||||
| 7 | 5303016182 | Evaporator |
|
- | |||||
| 8 | 5303208665 | Tray-evaporator |
|
- | |||||
| 9 | 5303017307 | Condenser |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 3016901 | Base |
|
- | |||||
| 13 | 5303002664 | Washer (3) |
|
- | |||||
| *30408 | 5308017253 | Capillary Tube (cut To 40``) (2) |
|
- | |||||
| *30408 | 5300265301 | Drier-filter |
|
$ 284.30 |
