View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

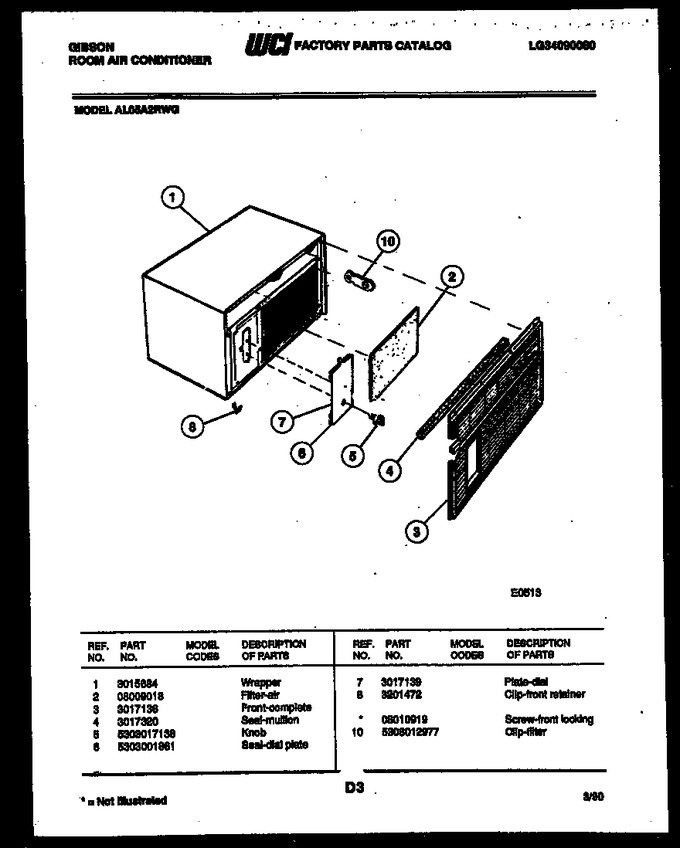

| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 08009018 | Filter-air |
|
- | |||||
| 3 | 3017136 | Front-complete |
|
- | |||||
| 4 | 3017320 | Seal-mullion |
|
- | |||||
| 5 | 5303017138 | Knob |
|
- | |||||
| 6 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 7 | 3017139 | Plate-dial |
|
- | |||||
| 8 | 3201472 | Clip-front Retainer |
|
- | |||||
| 10 | 5308012977 | Clip-filter |
|
- | |||||
| 8A | 08010919 | Screw-front Locking (non-illustrated) |
|
- |
