02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

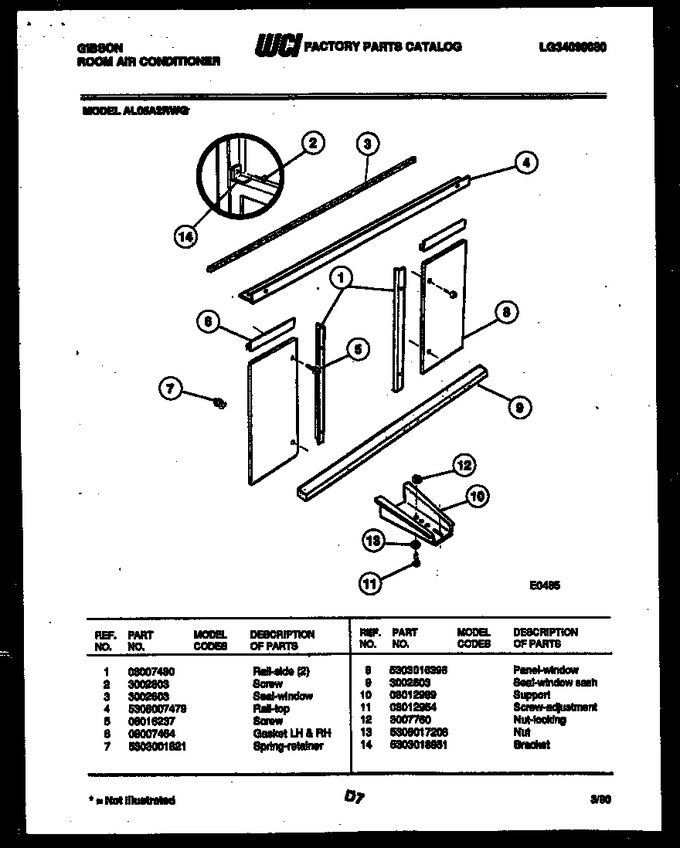

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007480 | Rail-side (2) |
|
- | |||||
| 2 | 3002803 | Screw |
|
- | |||||
| 3 | 3002603 | Seal-window |
|
- | |||||
| 4 | 5308007479 | Rail-top |
|
- | |||||
| 5 | 08016237 | Screw |
|
- | |||||
| 6 | 08007464 | Gasket Lh & Rh |
|
- | |||||
| 7 | 5303001821 | Spring-retainer |
|
- | |||||
| 8 | 5303016396 | Panel-window |
|
- | |||||
| 9 | 3002603 | Seal Window Sash |
|
- | |||||
| 10 | 08012989 | Support |
|
- | |||||
| 11 | 08012954 | Screw Adjustment |
|
- | |||||
| 12 | 3007760 | Nut-locking |
|
- | |||||
| 13 | 5308017206 | Nut |
|
- | |||||
| 14 | 5303018951 | Bracket |
|
- |
