View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Liner
03 - Compartment Separator
04 - Shelf
05 - Freezer Door, Unit
06 - Section
07 - Section
SELECT A DIAGRAM
New Model Search:

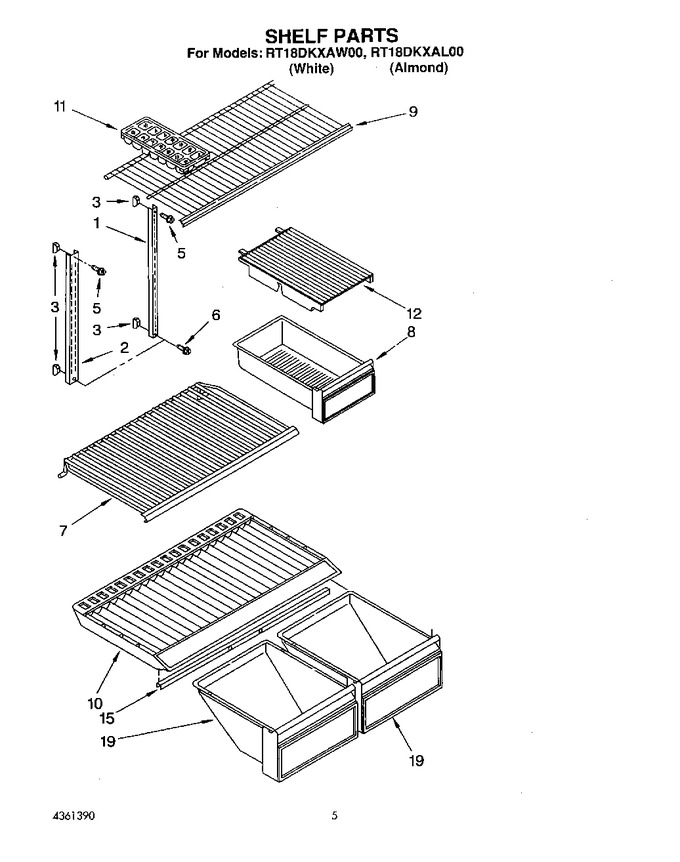

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1114466 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 1114465 | Shelf, Ladder (1) |
|
- | |||||
| 3 | 520965 | Screw, Support |
|
$ 26.87 | |||||
| 5 | 489345 | Screw, |
|
- | |||||
| 6 | WP488163 | Screw, (Replaces: 488163) |
|
$ 6.79 | |||||
| 7 | 2163243 | Shelf, Full (2) |
|
- | |||||
| 8 | 2163411 | Pan, Meat |
|
- | |||||
| 9 | 2163241 | Shelf-f.c. |
|
- | |||||
| 10 | 2163244 | Cover, Crisper |
|
- | |||||
| 11 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 41.00 | ||||
| 12 | 944739 | Cover, Meat Pan |
|
- | |||||
| 15 | WP2172748 | Support, Crisper (Replaces: 1116708) |
|
$ 87.50 | |||||
| 19 | 2163207 | Pan, Crisper |
|
- |
