SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door, Unit


06 - Section


07 - Section

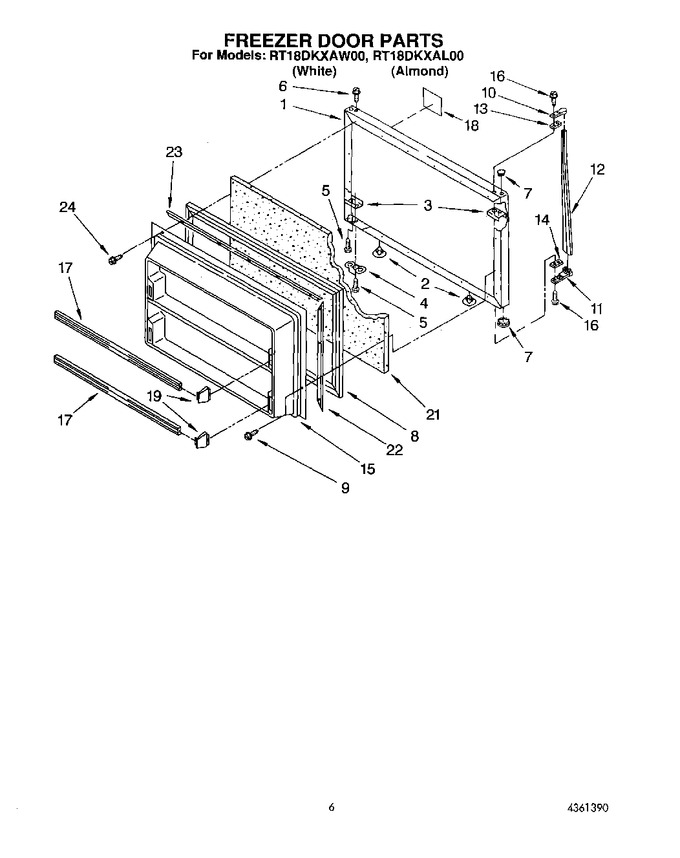

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157711		Panel, Freezer Door (also Order Item (2) (almond)		Appelez-nous	-
1	2157708		Panel, Freezer Door (also Order Item (2) (white)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	1116735		Door Gasket Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
10	1108955		Handle End, Top		Appelez-nous	-
11	819342		Handle End   (Replaces: 1108952)			Immediately	$ 43.16
12	2163255		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1116610		Panel, Interior Door (freezer)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf   (Replaces: 2163539)				$ 106.56
18	2160005		Nameplate		Appelez-nous	-
19	1106862		Endcap, Trim				$ 5.70
21	876029		Kit, Foam Slab		Appelez-nous	-
22	1115138		Gasket Retainer, Side (2)		Appelez-nous	-
23	1115137		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
24	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.01

    View Diagram in Separate Window       Print Part List
