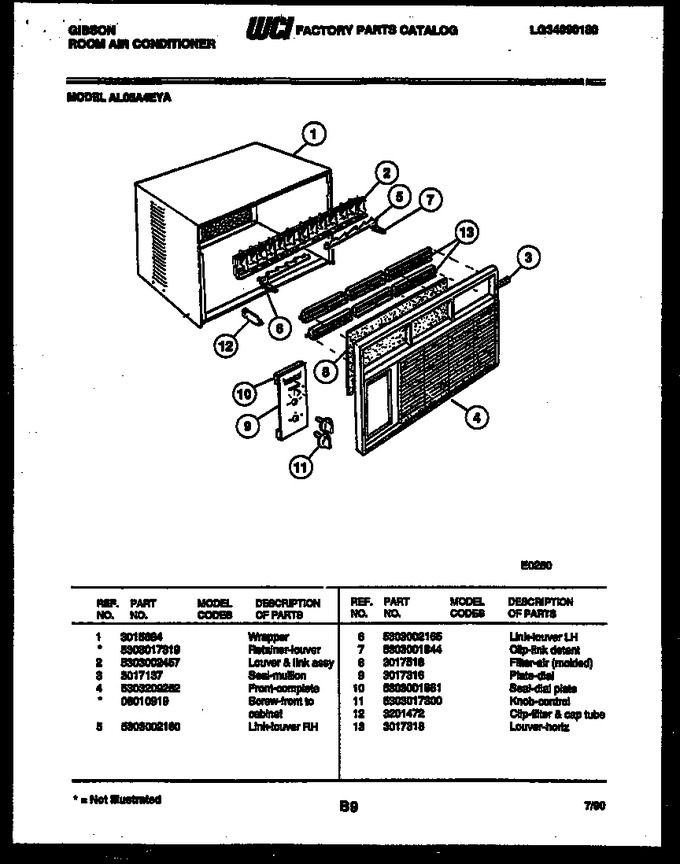

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 5303002457 | Louver & Link Assy |
|
- | |||||
| 3 | 3017137 | Seal-mullion |
|
- | |||||
| 4 | 5303209262 | Front-complete |
|
- | |||||
| 5 | 5303002160 | Link-louver Rh |
|
- | |||||
| 6 | 5303002165 | Link-louver Lh |
|
- | |||||
| 7 | 5303001844 | Clip-link Detent |
|
- | |||||
| 8 | 3017518 | Filter-air (molded) |
|
- | |||||
| 9 | 3017316 | Plate-dial |
|
- | |||||
| 10 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 11 | 5303017300 | Knob-control |
|
- | |||||
| 12 | 3201472 | Clip-filter & Cap Tube |
|
- | |||||
| 13 | 3017318 | Louver-horiz |
|
- | |||||
| 1A | 5303017319 | Retainer-louver (non-illustrated) |
|
- | |||||
| 4A | 08010919 | Screw-front To Cabinet (non-illustrated) |
|
- |
