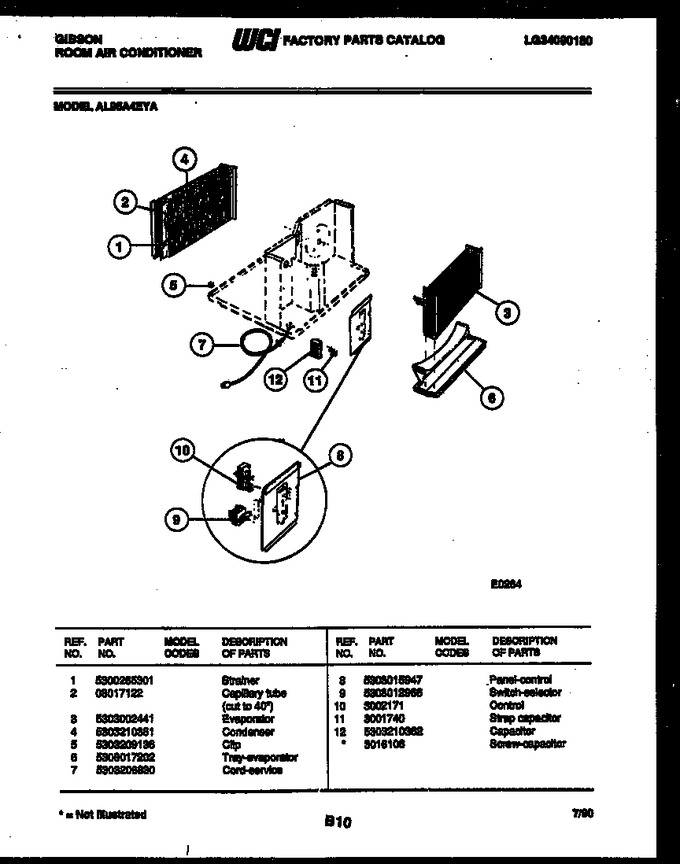

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Strainer |
|
$ 284.30 | |||||
| 2 | 08017122 | Capillary Tube (cut To 40``) |
|
- | |||||
| 3 | 5303002441 | Evaporator |
|
- | |||||
| 4 | 5303210361 | Condenser |
|
- | |||||
| 5 | 5303209136 | Clip |
|
- | |||||
| 6 | 5308017202 | Tray-evaporator |
|
- | |||||
| 7 | 5303206830 | Cord-service |
|
- | |||||
| 8 | 5303015947 | Panel-control |
|
- | |||||
| 9 | 5308012966 | Switch-selector |
|
- | |||||
| 10 | 3002171 | Control |
|
- | |||||
| 11 | 3001740 | Strap-capacitor |
|
- | |||||
| 12 | 5303210362 | Capacitor |
|
- | |||||
| *26661 | 3016106 | Screw Capacitor |
|
- |
