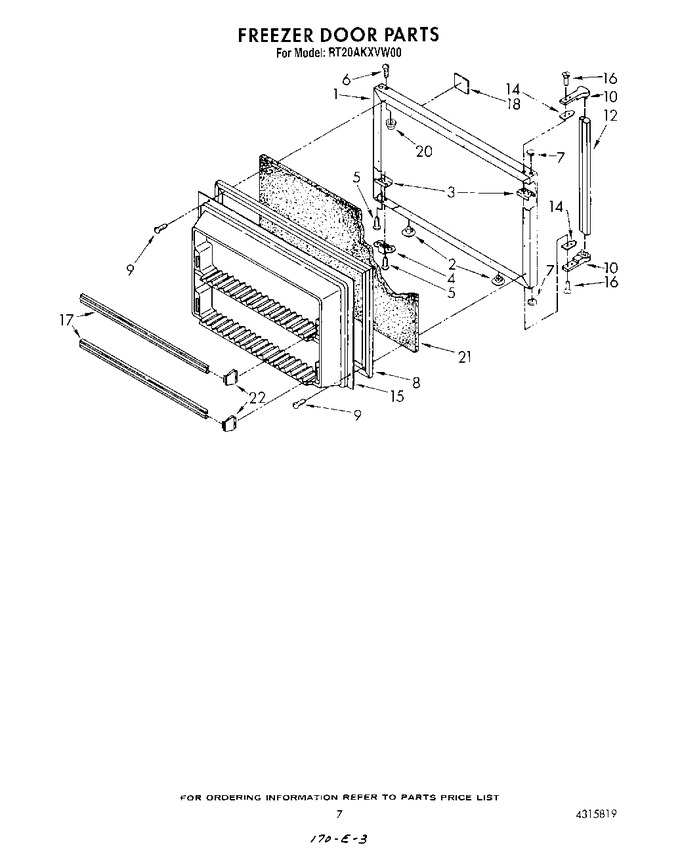

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105509		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1105511		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 6.98
5	489221		Screw (repair)		Appelez-nous	-
6	489221		Screw (repair)		Appelez-nous	-
6	WP488921		Screw   (Replaces: 489224)			Immediately	$ 6.98
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	2188460A		Door Gasket, Magnetic   (Replaces: 1105515)				$ 198.44
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
10	944157		End Cap, Handle (2)		Appelez-nous	-
12	1120835		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door (2)				$ 7.80
15	1106865		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489219)				$ 6.74
16	489250		Screw (repair)		Appelez-nous	-
17	1120833		Trim, Door Shelf (2)		Appelez-nous	-
18	1124315		Nameplate		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		Endcap, Trim (4)   (Replaces: 1124341)			Immediately	$ 16.20

    View Diagram in Separate Window       Print Part List
