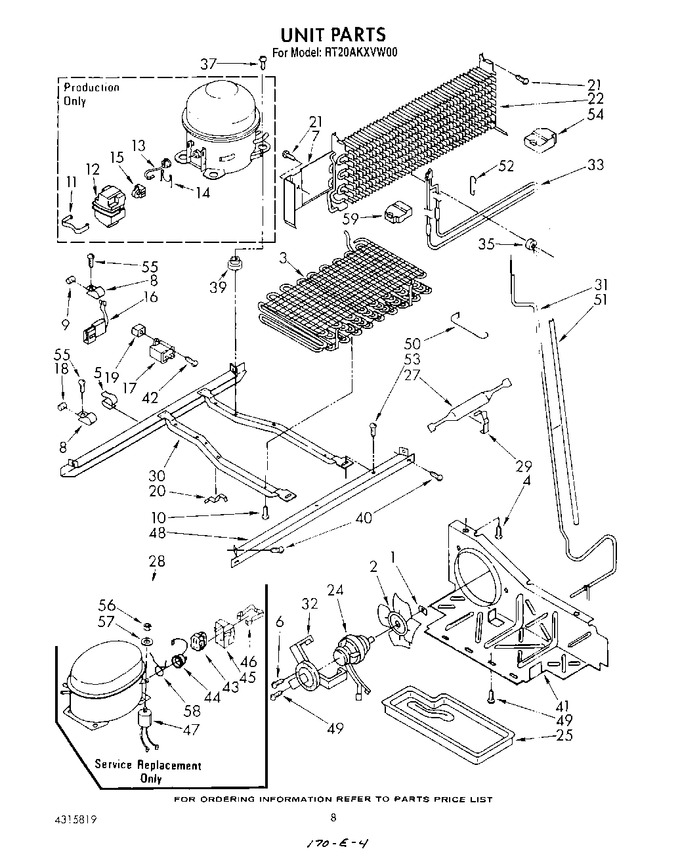

07 - Unit


08 - Refrigerator Door , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	989524		Fan, Blade		Appelez-nous	-
3	1114155		Condenser Assembly		Appelez-nous	-
4	489050		Screw				$ 623.30
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 11.75
7	1105545		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
10	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.07
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	1118851		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	945507		Relay		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 52.97
18	WP2158826		Dampener   (Replaces: 836075)				$ 1.56
19	509812		Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	1118548		Evaporator		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 1121292)			Immediately	$ 79.34
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 47.31
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57, & 58) (also Order 876765 Tube Kit)		Appelez-nous	-
29	548508		Clamp, Drier		Appelez-nous	-
30	1105534		Unit Mounting Frame		Appelez-nous	-
31	1118681		Heat, Exchanger		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	1105551		Heater, Defrost		Appelez-nous	-
35	WP4387500		Bi-metal, Defrost   (Replaces: 1115192)				$ 107.69
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 6.68
39	876811		Grommet (4)   (Replaces: 1114359)				$ 6.68
40	489340		Screw   (Replaces: 488683)		Appelez-nous	-
41	1105529		Baffle, Air		Appelez-nous	-
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
43	WP2262181		Relay   (Replaces: 1108143)				$ 110.39
44	483037		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	1105525		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 36.52
51	1108690		Sleeve		Appelez-nous	-
52	851358		Support, Heater		Appelez-nous	-
53	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
54	1118550		Support (r.s.)		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	876764		Valve, Access(3/16``)			Immediately	$ 82.22
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 117.64
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
59	1118551		Support, Evaporator (l.s.)		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 115.28
