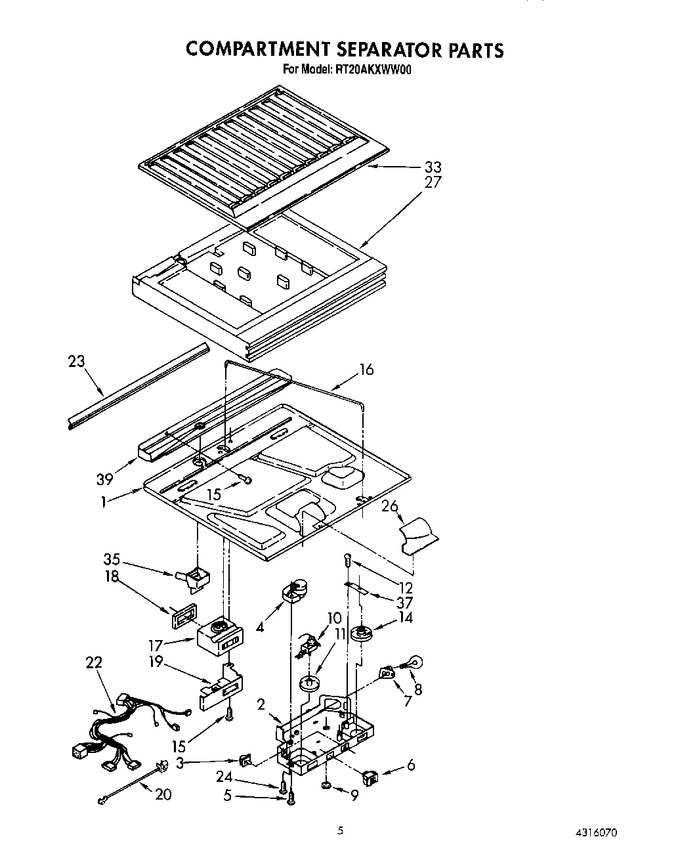

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105450		Bottom, Compartment Separator		Appelez-nous	-
2	1105455		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 1105461)			Immediately	$ 36.36
4	CC901		Timer, Defrost (10 Hour)   (Replaces: 1127570)			Immediately	$ 52.44
5	WP487353		Screw   (Replaces: 488693)				$ 6.81
6	1105167		Switch, Toggle		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 851067)			Immediately	$ 99.14
8	W11679940		Bulb, Light (2)   (Replaces: 946059)			Immediately	$ 10.17
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 1123212)				$ 188.53
11	1116362		Knob, Thermostat		Appelez-nous	-
12	WP965173		Screw 8 X 1/2   (Replaces: 487415)			Immediately	$ 9.65
14	1116363		Knob, Air Control		Appelez-nous	-
15	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.07
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	1105459		Rod, Connecting		Appelez-nous	-
17	1123221		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	1114482		Ground Wire		Appelez-nous	-
22	1127838		Wiring Assembly, Control Box		Appelez-nous	-
23	1114382		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2 (2)   (Replaces: 489048)				$ 7.16
26	942817		Insulation, Filler		Appelez-nous	-
27	1105463		Insulation, Compartment Separator		Appelez-nous	-
33	1129022		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
39	1105521		Drain Pan		Appelez-nous	-
