SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door

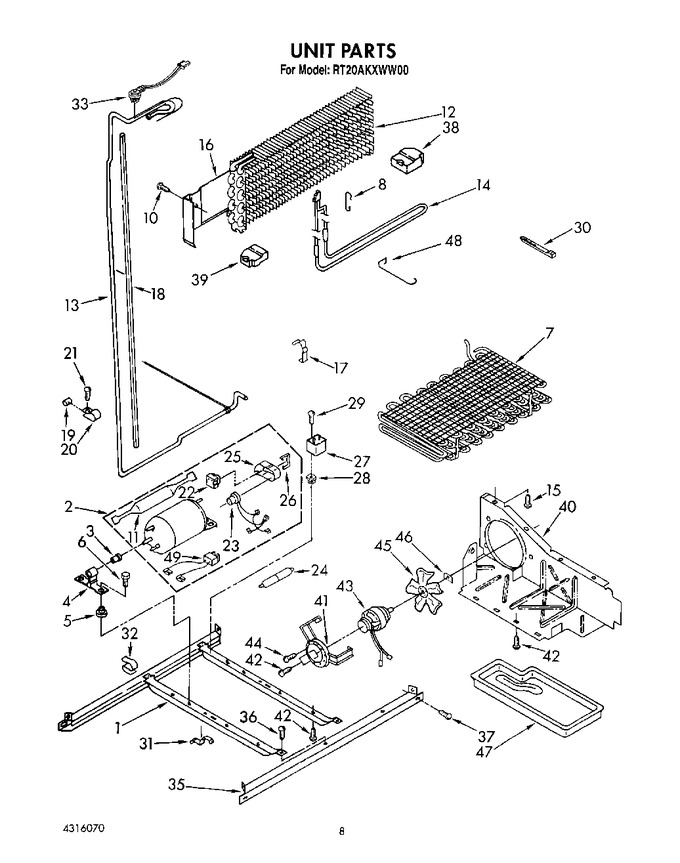

06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2149611		Unit, Frame		Appelez-nous	-
2	4318250		Compressor Kit (includes Items 11, 22, 23, 25, 26, 27) (service Compressor May Look Different Than O		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 6.68
5	1105200		Grommet, Compressor (4) (production)		Appelez-nous	-
6	489334		Screw (4)		Appelez-nous	-
7	2149613		Condenser Assembly		Appelez-nous	-
8	851358		Support, Heater		Appelez-nous	-
10	W11624204		Screw (2)   (Replaces: 486194)				$ 12.62
11	W10843121		Drier   (Replaces: 4318249)			Immediately	$ 47.31
12	1118548		Evaporator Assembly		Appelez-nous	-
13	2149616		Heat, Exchanger		Appelez-nous	-
14	1118829		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	1105545		Heat Shield		Appelez-nous	-
17	1127590		Clamp, Dryer		Appelez-nous	-
18	1108690		Sleeve		Appelez-nous	-
19	510769		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 19.04
22	N/A		Relay (see Overload)		Appelez-nous	-
23	4387535		Overload (service (includes Relay))   (Replaces: 2154760)				$ 163.76
23	1116635		Overload (production (includes Relay))		Appelez-nous	-
24	2149654		Muffler		Appelez-nous	-
25	1105221		Terminal Cover (production)		Appelez-nous	-
25	1108115		Terminal Cover (service)		Appelez-nous	-
26	1105222		Strap, Cover (production)		Appelez-nous	-
26	938384		Strap, Cover (service)		Appelez-nous	-
27	2154565		Running Capacitor (service)		Appelez-nous	-
27	WPW10662129		Running, Capacitor (production)   (Replaces: 1114291)			Immediately	$ 52.97
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
30	851095		Strap		Appelez-nous	-
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387500		Defrost, Bimetal   (Replaces: 1127805)				$ 107.69
35	2149717		Unit, Rail		Appelez-nous	-
36	WP489427		Screw   (Replaces: 489339)				$ 6.72
37	489340		Screw (4)		Appelez-nous	-
38	1118550		Support (r.s.)		Appelez-nous	-
39	1118551		Support, Evaporator (l.s.)		Appelez-nous	-
40	1127938		Air, Baffle		Appelez-nous	-
41	548695		Fan, Mounting Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8		Appelez-nous	-
43	833697		Motor, Fan   (Replaces: 1121292)			Immediately	$ 79.34
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 11.75
45	989524		Fan, Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
47	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
48	1105612		Guard, Fan				$ 36.52
49	876764		Valve, Access(3/16``)			Immediately	$ 82.22
49	978026		Valve, Access (5/16``)			Immediately	$ 115.28
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 117.64
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
49	WP2172890		Wire   (Replaces: 1127675)				$ 7.29

    View Diagram in Separate Window       Print Part List
