SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf

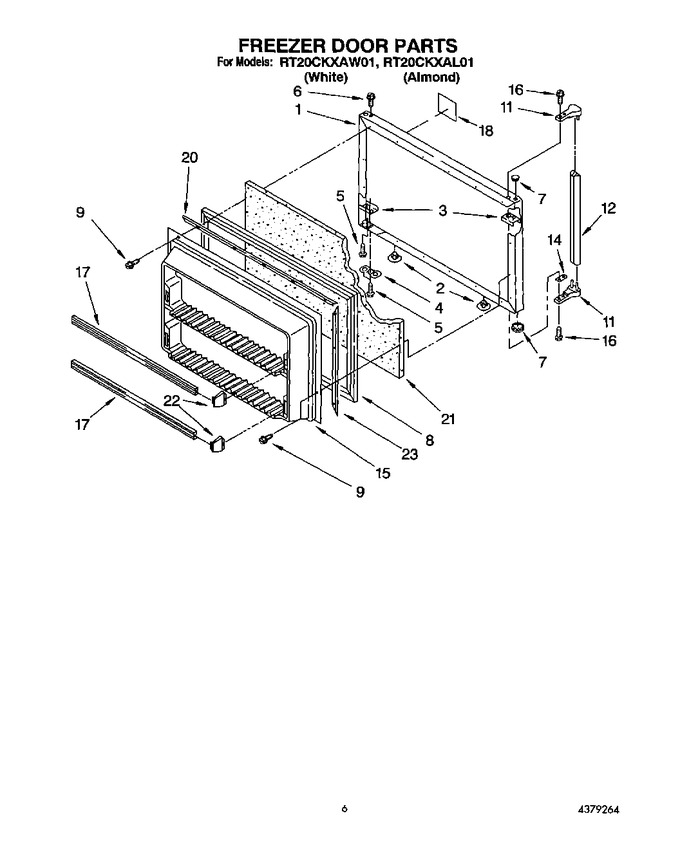

05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159160		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	2188460A		Door Gasket Magnetic   (Replaces: 1122831)				$ 198.44
9	WP488729		Screw ((8))   (Replaces: 489287)			Immediately	$ 7.01
9	WP489069		Screw (7 X 1/2 (12))   (Replaces: 489101)			Immediately	$ 7.07
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
11	944157		Handle End		Appelez-nous	-
12	2163218		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	1122575		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2163273)				$ 106.56
18	2160005		Nameplate		Appelez-nous	-
20	1122552		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1106862		Endcap, Trim				$ 5.70
23	1122553		Retainer, Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
