SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional

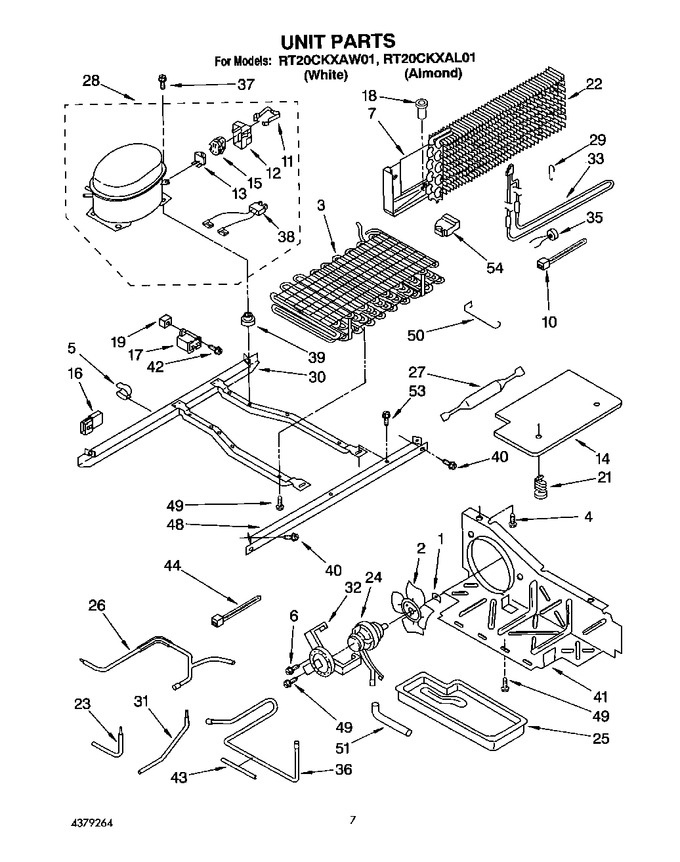

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	851732		Fan, Blade		Appelez-nous	-
3	2164513		Condenser Assy.		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 11.75
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2155774)				$ 7.11
11	938384		Strap		Appelez-nous	-
12	1108115		Cover, Terminal		Appelez-nous	-
13	4387535		Overload (service (includes Relay))   (Replaces: 2154760)				$ 163.76
13	4387535		Overload (production (includes Relay))   (Replaces: 2159596)				$ 163.76
14	2160505		Cover, Unit Bottom		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2154565		Running Capacitor		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
21	489396		Clip				$ 9.65
22	2153978		Evaporator		Appelez-nous	-
23	2154109		Tube, Process				$ 65.37
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 79.34
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
26	2162475		Tube, Discharge		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 47.31
28	W10439652		Compressor (includes Item 11, 12, 13, 15, 17, 38 & 39) (also Order)   (Replaces: 2154557)				$ 379.03
28	876765		Tube Kit			Immediately	$ 77.70
29	2149120		Support, Heater		Appelez-nous	-
30	2160498		Unit Mounting Frame		Appelez-nous	-
31	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 43.10
36	2162472		Tube, Suction		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 6.68
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 7.29
39	876811		Grommet   (Replaces: 1100826)				$ 6.68
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
43	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 18.27
44	WPW10339879		Strap   (Replaces: 2165001)				$ 7.11
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
50	1105612		Guard, Fan				$ 36.52
51	2154119		Drain Extension		Appelez-nous	-
53	488454		Screw,		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 82.22
54	978030		Valve, Access (3/4``)				$ 117.64
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 115.28
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
