SELECT A DIAGRAM

01 - Cabinet

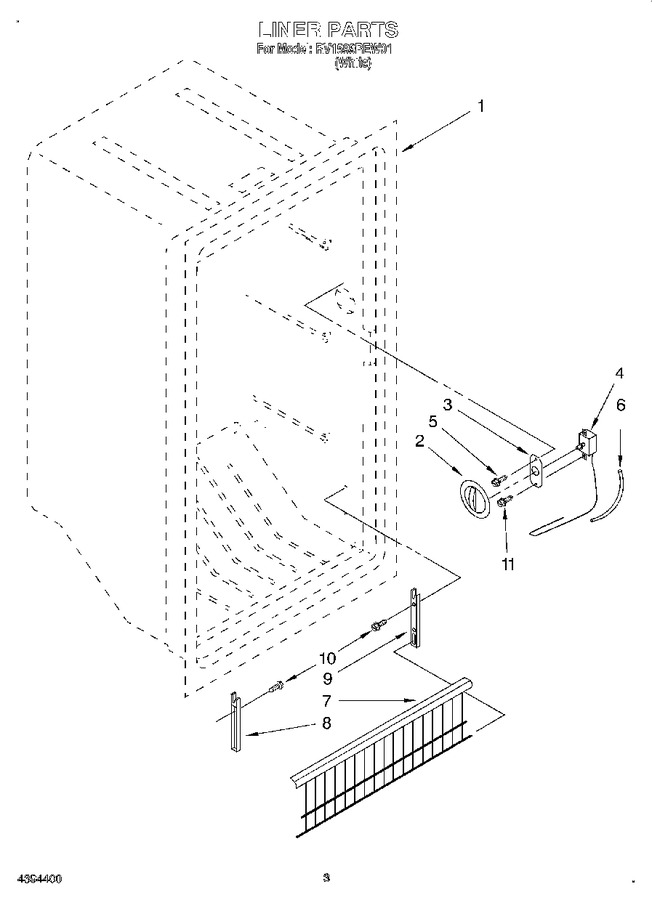

02 - Liner, Lit/optional


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4357040		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 12.86
4	4356808		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.16
7	4357163		Gate		Appelez-nous	-
8	4356889		Support, Fence, (l.h.)		Appelez-nous	-
9	4356890		Support, Fence, (r.h.)		Appelez-nous	-
10	4356891		Screw		Appelez-nous	-
11	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 12.62
11	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
11	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
11	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
11	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
11	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
11	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT4357203		Energy Label		Appelez-nous	-
	LIT2165596		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
