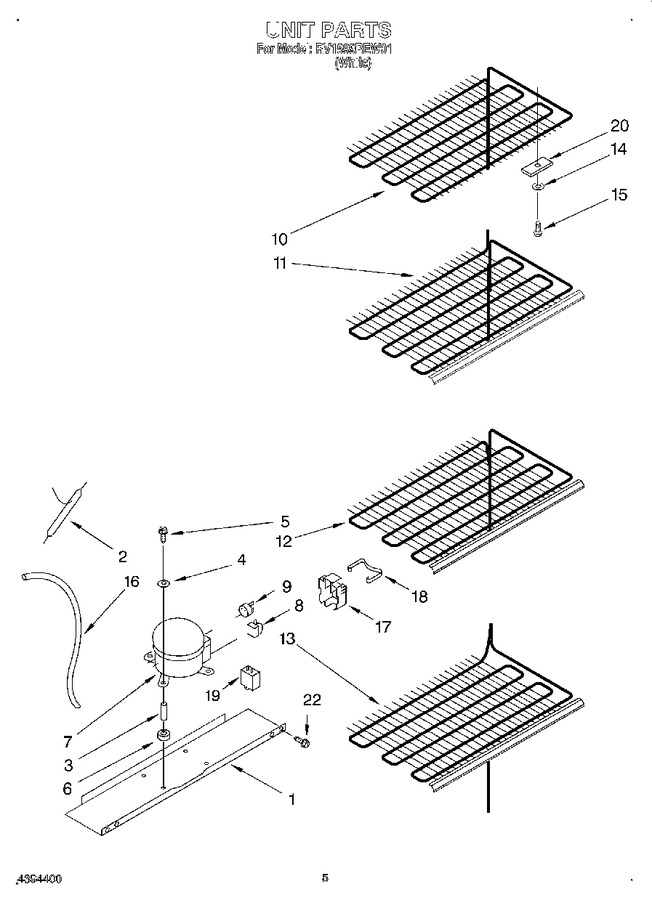

SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357109		Compressor Mounting Pan		Appelez-nous	-
2	4007A		Drier   (Replaces: 4356332)			Immediately	$ 13.55
3	4356846		Compressor Grommet Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4357054		Compressor Mounting Screw		Appelez-nous	-
6	4356335		Compressor Grommet		Appelez-nous	-
7	W10309994		Compressor (includes Items 6, 8, 9, 17 & 18)   (Replaces: 4356596)			Immediately	$ 551.61
8	4356994		Relay		Appelez-nous	-
9	2183409		Overload   (Replaces: 4390576)				$ 111.81
10	4357166		Evaporator Top		Appelez-nous	-
11	4357167		Evaporator Shelf		Appelez-nous	-
12	4357168		Evaporator Shelf		Appelez-nous	-
13	4357169		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357110)				$ 7.25
16	4357165		Heat Exchanger		Appelez-nous	-
17	4356946		Cover		Appelez-nous	-
18	4356951		Clip		Appelez-nous	-
19	4357154		Capacitor		Appelez-nous	-
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00

    View Diagram in Separate Window       Print Part List
