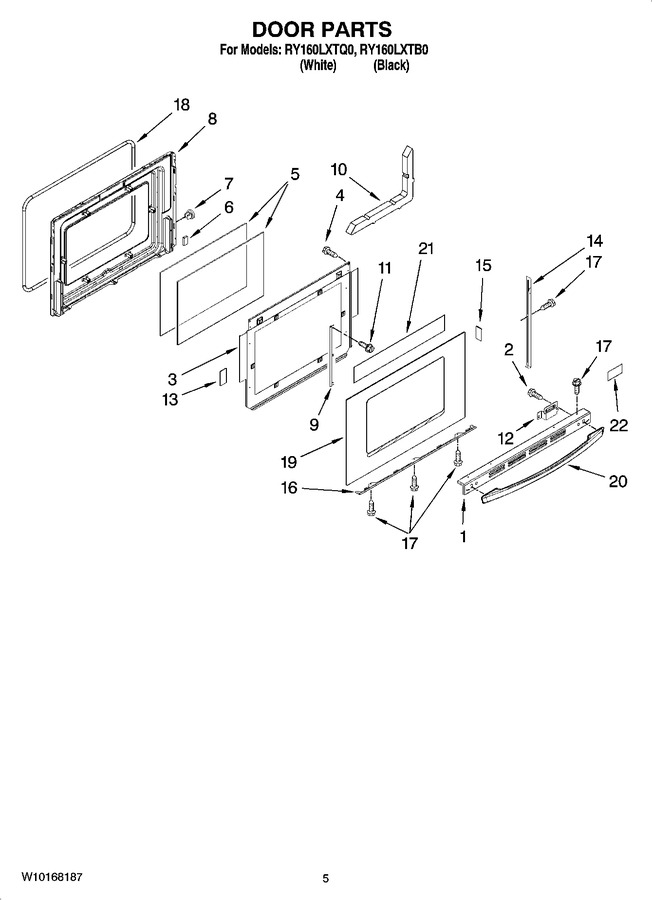

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165729		Trim, Door Top (black)		Appelez-nous	-
1	W10165726		Trim, Door Top (white)		Appelez-nous	-
2	WP74006515		Screw, Handle (2)   (Replaces: 74011674)				$ 7.29
3	3601F373-51		Baffle, Retainer   (Replaces: 74011457)				$ 244.22
4	W11233072		Screw, (8ab 1/2)   (Replaces: 74001530)			Immediately	$ 12.62
5	74003645		Glass, Inner (2)			Immediately	$ 162.53
6	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
7	WP74001574		Nut, Snap (4)   (Replaces: 74001574)			Immediately	$ 9.91
8	74011456		Liner, Door		Appelez-nous	-
9	74011458		Bracket, Glass (2)		Appelez-nous	-
10	74003647		Insulation, Door		Appelez-nous	-
11	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
12	3801F831-45		Bracket, Handle (right)   (Replaces: 74009698)				$ 19.17
12	3801F832-45		Bracket, Handle (left)   (Replaces: 74009699)				$ 19.12
13	WP74004224		Tape, White   (Replaces: 74004224)				$ 10.53
14	WP3608F116-71		Trim, Door Side (white - Right)   (Replaces: 74009694)				$ 112.01
14	74009693		Trim, Door Side (black - Left)		Appelez-nous	-
14	74009692		Trim, Door Side (black - Right)		Appelez-nous	-
14	WP3608F117-71		Trim, Door Side (white - Left)   (Replaces: 74009695)				$ 111.43
15	WP74009014		Tape, Double Sided (white)   (Replaces: 74009014)				$ 6.91
15	74009025		Tape, Double Sided (black)				$ 8.60
16	WP3807F708-71		Trim, Door Bottom (white)   (Replaces: 74009687)				$ 144.83
16	74009686		Trim, Door Bottom (black)		Appelez-nous	-
17	WP98008544		Screw, Trim (white)   (Replaces: 74009540)				$ 11.89
17	W10828565		Screw, Trim (black)   (Replaces: 74009539)				$ 6.70
18	WPW10162384		Seal, Door   (Replaces: 7201P046-60)			Immediately	$ 77.61
19	W10165731		Glass, Door (black (order Items 13 & 21 When Replacing Door Glass))		Appelez-nous	-
19	W10165730		Glass, Door (white)		Appelez-nous	-
20	74008318		Handle, Door (black)		Appelez-nous	-
20	74008322		Handle, Door (white)		Appelez-nous	-
21	74003664		Tape, Foil		Appelez-nous	-
22	8303811		Nameplate, Logo				$ 29.09
