01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

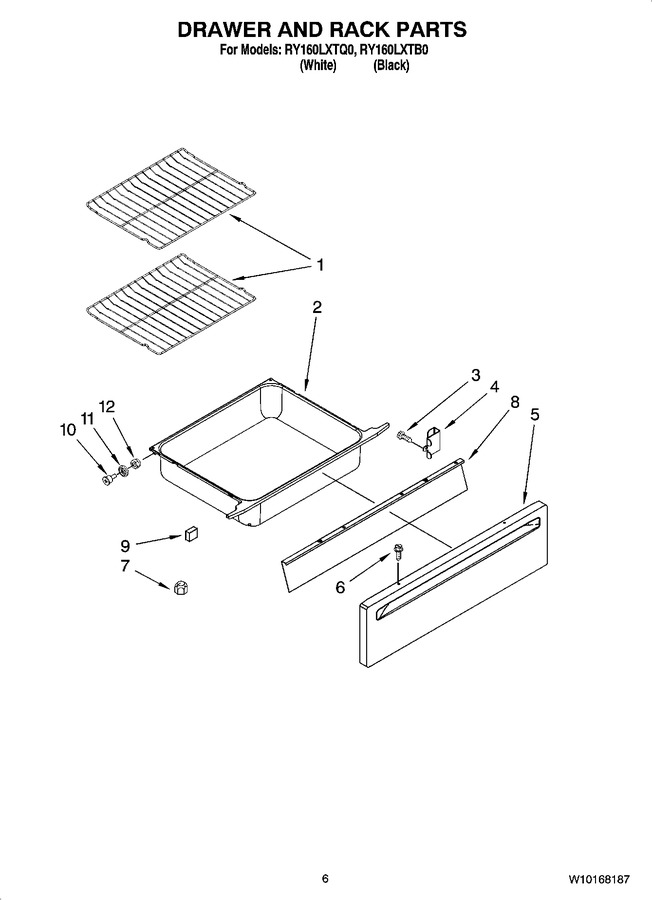

05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10282492 | Rack, Oven (2) (Replaces: 74001757) |
|
Immediately | $ 65.15 | ||||
| 2 | 74008333 | Drawer, Storage |
|
- | |||||
| 3 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) |
|
$ 6.77 | |||||
| 4 | 74010896 | Bracket, Drawer |
|
- | |||||
| 5 | 74003407 | Panel, Drawer (white) |
|
- | |||||
| 5 | 74003701 | Panel, Drawer (black) |
|
- | |||||
| 6 | W10828565 | Screw, Panel (black) (Replaces: 74009539) |
|
$ 6.70 | |||||
| 6 | WP98008544 | Screw, Panel (white) (Replaces: 74009540) |
|
$ 11.89 | |||||
| 7 | 74005230 | Nut, Lock |
|
$ 12.02 | |||||
| 8 | 2404F030-51 | Lining, Drawer |
|
- | |||||
| 9 | WP74005546 | Spacer, Rubber (Replaces: 74005546) |
|
$ 9.48 | |||||
| 10 | WP74004078 | Roller Drawer (2) (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 11 | 74005231 | Shaft, Roller (2) |
|
$ 9.23 | |||||
| 12 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.29 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 5171P556-60 | Coil, Harness (rt) (Replaces: 74010891) |
|
$ 16.59 | ||||||
| 74010893 | Coil, Harness (lt) |
|
- | ||||||
| W10166773 | Harness, Main |
|
- | ||||||
| 5700P822-60 | Cable, Assy.(flex) (Replaces: 74011206) |
|
- | ||||||
| 8019P013-60 | Clip, Wire (Replaces: 74006811) |
|
$ 13.46 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 74010890 | Harness, Sensor |
|
$ 34.51 |
