02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

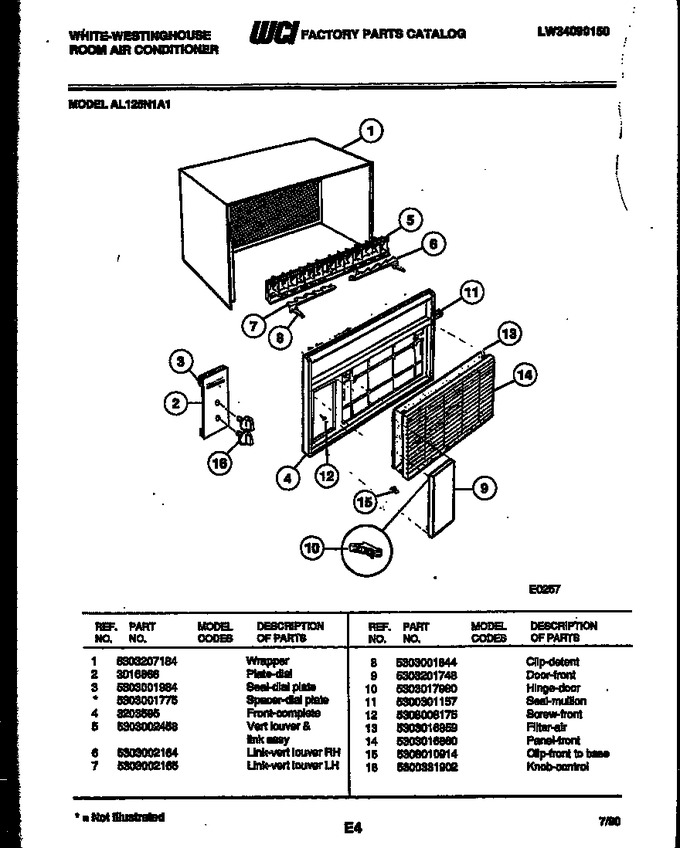

| 1 | 5303207184 | Wrapper |
|
- | |||||
| 2 | 3016866 | Plate-dial |
|
- | |||||
| 3 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 4 | 3203595 | Front Complete |
|
- | |||||
| 5 | 5303002458 | Vert. Louver & Link Assy. |
|
- | |||||
| 6 | 5303002164 | Link - Vert Louver Rh |
|
- | |||||
| 7 | 5303002165 | Link - Vert Louver Lh |
|
- | |||||
| 8 | 5303001844 | Clip-detent |
|
- | |||||
| 9 | 5303201748 | Door-front |
|
- | |||||
| 10 | 5303017980 | Hinge - Door |
|
- | |||||
| 11 | 5300301157 | Seal-mullion |
|
- | |||||
| 12 | 5308008175 | Screw-front |
|
- | |||||
| 13 | 5303016859 | Filter-air |
|
- | |||||
| 14 | 5303016860 | Panel-front |
|
- | |||||
| 15 | 5308010914 | Clip-front To Base |
|
- | |||||
| 16 | 5300331902 | Knob Control |
|
- | |||||
| 3A | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- |
