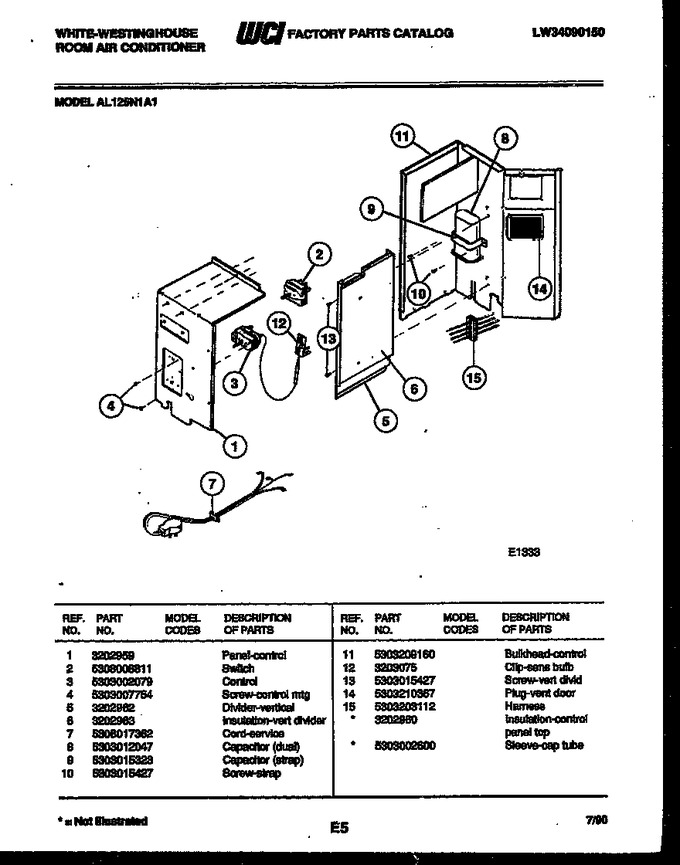

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202959 | Panel-control |
|
- | |||||
| 2 | 5308006811 | Switch |
|
$ 33.65 | |||||
| 3 | 5303002079 | Control |
|
- | |||||
| 4 | 5303007754 | Screw-control Mtg. |
|
- | |||||
| 5 | 3202962 | Divider-vertical |
|
- | |||||
| 6 | 3202963 | Insulation-vert Divider |
|
- | |||||
| 7 | 5308017362 | Cord-service |
|
- | |||||
| 8 | 5303012047 | Capacitor-dual |
|
- | |||||
| 9 | 5303015323 | Capacitor (strap) |
|
- | |||||
| 10 | 5303015427 | Screw-strap |
|
- | |||||
| 11 | 5303209160 | Bulkhead-control |
|
- | |||||
| 12 | 3203075 | Clip Sens Bulb |
|
- | |||||
| 13 | 5303015427 | Screw-vert Divid |
|
- | |||||
| 14 | 5303210367 | Plug-vent Door |
|
- | |||||
| 15 | 5303203112 | Harness |
|
- | |||||
| *33797 | 3202960 | Insulation-control Panel Top |
|
- | |||||
| *33797 | 5303002600 | Sleeve - Cap Tube |
|
- |
