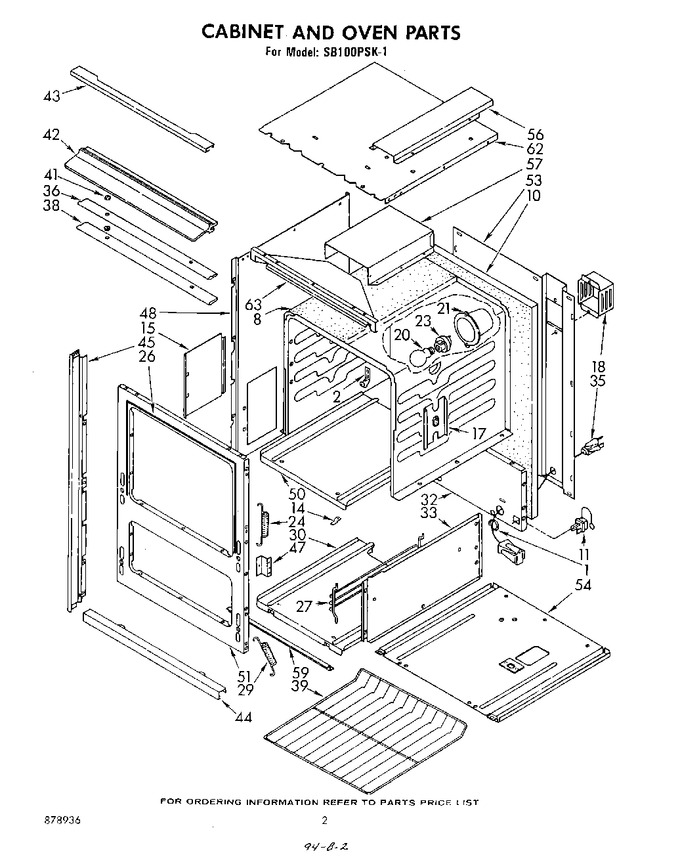

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878078		Bushing, Snap		Appelez-nous	-
2	98005642		Clip, Thermostat Bulb   (Replaces: 878081)			Immediately	$ 74.64
8	WPW10208653		Insulation, Oven Wrap   (Replaces: 878307)			Immediately	$ 49.92
10	WPW10208653		Insulation, Oven Back   (Replaces: 878893)			Immediately	$ 49.92
11	878613		Plug, Male Receptacle		Appelez-nous	-
14	878107		Clip, Oven Bottom Plate (2)		Appelez-nous	-
15	878874		Cover, Hinge		Appelez-nous	-
17	878875		Shield, Insulation		Appelez-nous	-
18	878623		Cover, Light Socket		Appelez-nous	-
20	8009		Bulb, Oven Light   (Replaces: 878122)			Immediately	$ 16.80
21	878625		Box, Oven Light		Appelez-nous	-
23	878124		Socket, Oven Light		Appelez-nous	-
24	878630		Spring, Oven Door (2)		Appelez-nous	-
26	878004		Seal, Oven Door (side (2))		Appelez-nous	-
26	878632		Seal, Oven Door (top (2))		Appelez-nous	-
27	878765		Runner, Broiler Rack (2)		Appelez-nous	-
29	878934		Spring, Broiler Door (2)		Appelez-nous	-
30	878641		Bottom, Broiler Compartment		Appelez-nous	-
32	878770		Back, Broiler Compartment		Appelez-nous	-
33	878771		Side, Broiler (left Side)		Appelez-nous	-
33	878772		Side, Broiler (right Side)		Appelez-nous	-
35	878654		Cord, Extension		Appelez-nous	-
36	878655		Louver, Vent Center		Appelez-nous	-
38	878656		Louver, Vent Bottom		Appelez-nous	-
39	878657		Rack, Oven (2)		Appelez-nous	-
41	878658		Spacer, Vent Grille (4)		Appelez-nous	-
42	878663		Trim, Control Panel Bottom		Appelez-nous	-
43	878666		Trim, Top		Appelez-nous	-
44	878667		Trim, Bottom		Appelez-nous	-
45	878776		Trim, Side (right)		Appelez-nous	-
45	878775		Trim, Side (left)		Appelez-nous	-
47	878777		Bracket, Oven Door Spring (2)		Appelez-nous	-
48	878778		Panel, End (left Side)		Appelez-nous	-
48	878779		Panel, End (right Side)		Appelez-nous	-
50	878780		Plate, Oven Bottom		Appelez-nous	-
51	878781		Front, Main		Appelez-nous	-
53	878782		Back, Main		Appelez-nous	-
54	878932		Base, Main		Appelez-nous	-
56	878677		Cover, Wire (top)		Appelez-nous	-
57	878679		Box, Vent		Appelez-nous	-
59	878680		Support, Bottom Plate		Appelez-nous	-
62	878681		Cover, Insulation		Appelez-nous	-
63	878936		List, Repair Parts		Appelez-nous	-
63	878683		Extension, Vent Box		Appelez-nous	-
63	878867		Booklet, Use & Care		Appelez-nous	-
63	878884		Instructions, Installation		Appelez-nous	-
63	878059		Diagram, Wiring		Appelez-nous	-
