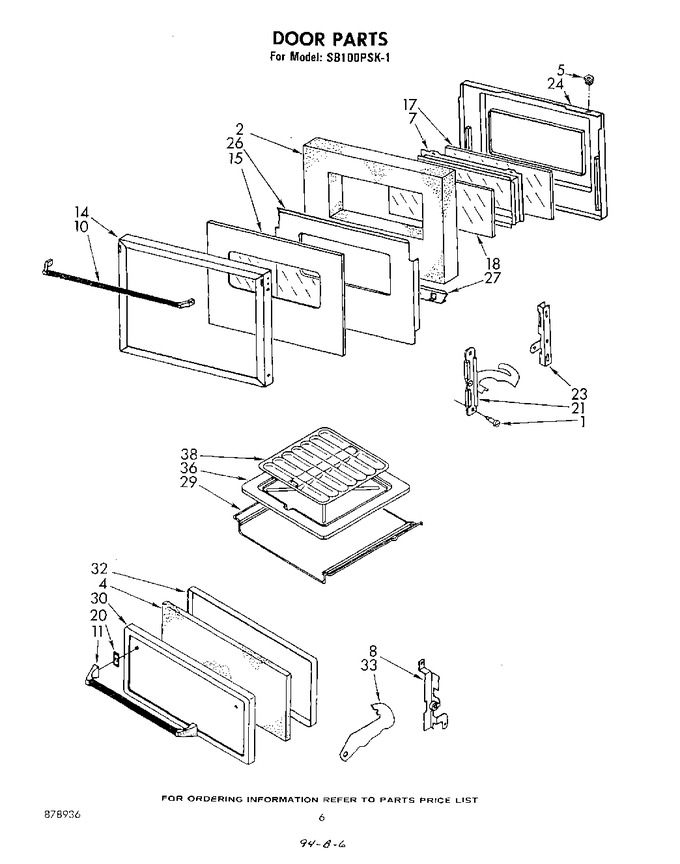

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878080		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
2	WPW10208653		Insulation, Oven Door   (Replaces: 878610)			Immediately	$ 49.92
4	878306		Insulation, Broiler Door		Appelez-nous	-
5	878095		Nut, Expansion (8)		Appelez-nous	-
7	878106		Frame, Window		Appelez-nous	-
8	878759		Support, Broiler Door Hinge (left Side)		Appelez-nous	-
8	878760		Support, Broiler Door Hinge (right Side)		Appelez-nous	-
10	878627		Handle Door (oven)		Appelez-nous	-
11	878762		Handle Door (broiler)		Appelez-nous	-
14	878628		Frame, Door		Appelez-nous	-
15	878629		Glass, Oven Door Outside		Appelez-nous	-
17	878002		Glass, Oven Door Inside		Appelez-nous	-
18	878141		Glass, Oven Door Center		Appelez-nous	-
20	878763		Spacer, Door Handle (2)		Appelez-nous	-
21	878167		Hinge, Oven Door (2)		Appelez-nous	-
23	878169		Support, Oven Door (right Side)		Appelez-nous	-
23	878168		Support, Oven Door (left Side)		Appelez-nous	-
24	878633		Lining, Oven Door		Appelez-nous	-
26	878635		Baffle, Door		Appelez-nous	-
27	878636		Retainer, Insulation		Appelez-nous	-
29	878764		Rack, Broiler Pan		Appelez-nous	-
30	878767		Panel, Broiler Door		Appelez-nous	-
32	878768		Lining, Broiler Door		Appelez-nous	-
33	878933		Hinge, Broiler Door (2)		Appelez-nous	-
36	878173		Pan, Broiler		Appelez-nous	-
38	878174		Tray, Broiler Pan		Appelez-nous	-
