02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

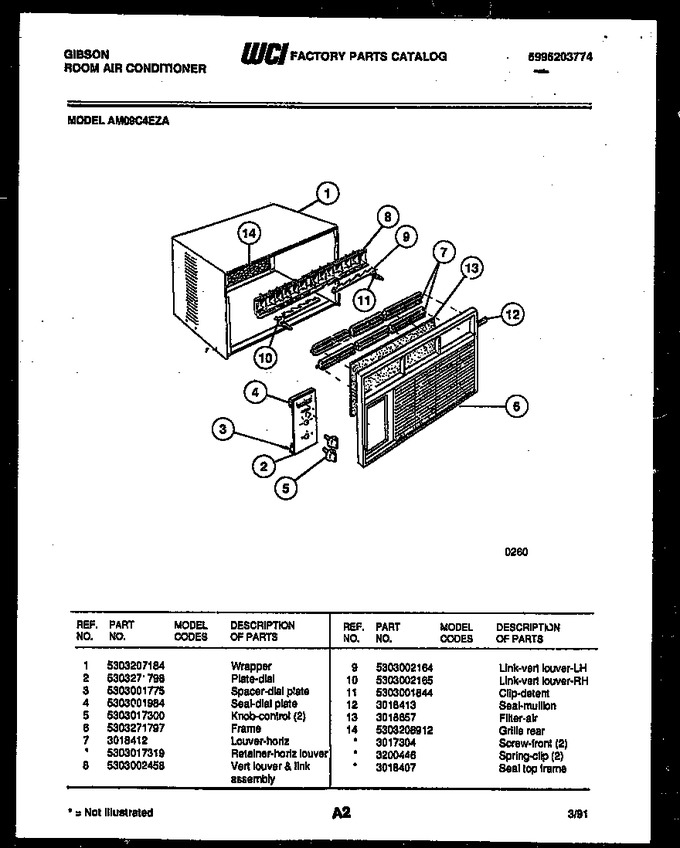

| 1 | 5303207184 | Wrapper |
|
- | |||||
| 2 | 5303271798 | Plate-dial |
|
- | |||||
| 3 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 4 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 5 | 5303017300 | Knob-control, (2) |
|
- | |||||
| 6 | 5303271797 | Frame |
|
- | |||||
| 7 | 3018412 | Louver-horiz |
|
- | |||||
| 8 | 5303002458 | Vert Louver & Link Assembly |
|
- | |||||
| 9 | 5303002164 | Link-vert Louver (lh) |
|
- | |||||
| 10 | 5303002165 | Link-vert Louver (rh) |
|
- | |||||
| 11 | 5303001844 | Clip-detent |
|
- | |||||
| 12 | 3018413 | Seal-mullion |
|
- | |||||
| 13 | 3018657 | Filter-air |
|
- | |||||
| 14 | 5303208912 | Grille Rear |
|
- | |||||
| *35820 | 3200446 | Spring-clip (2) |
|
- | |||||
| *35820 | 3018407 | Seal Top Frame |
|
- | |||||
| *35820 | 3017304 | Screw Front (2) |
|
- | |||||
| 7A | 5303017319 | Retainer-horiz Louver (non-illustrated) |
|
- |
