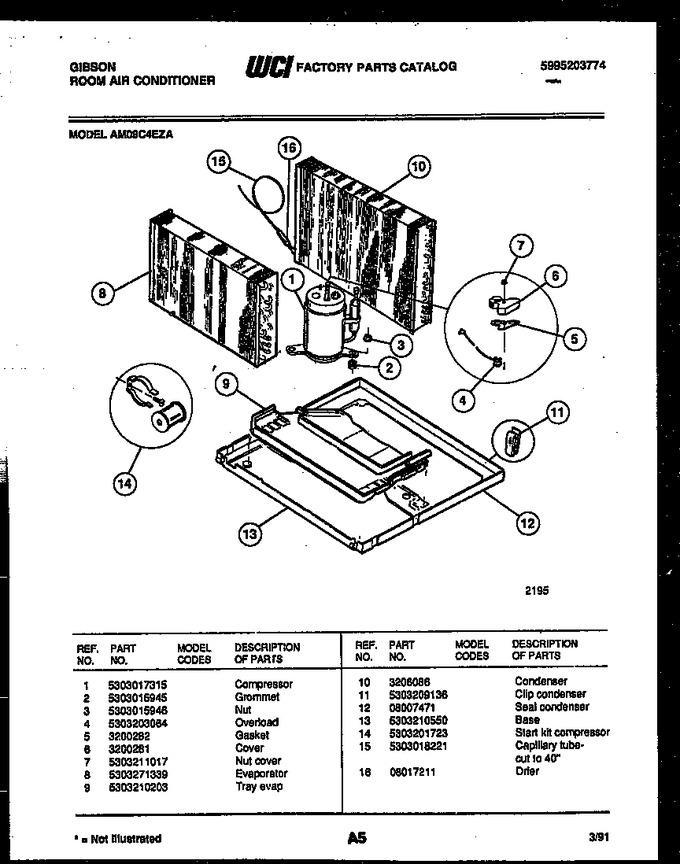

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017315 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303203064 | Overload |
|
- | |||||
| 5 | 3200282 | Gasket |
|
- | |||||
| 6 | 3200281 | Cover |
|
- | |||||
| 7 | 5303211017 | Nut-cover |
|
- | |||||
| 8 | 5303271339 | Evaporator |
|
- | |||||
| 9 | 5303210203 | Tray-evap |
|
- | |||||
| 10 | 3206086 | Condenser |
|
- | |||||
| 11 | 5303209136 | Clip-condenser |
|
- | |||||
| 12 | 08007471 | Seal Condenser |
|
- | |||||
| 13 | 5303210550 | Base |
|
- | |||||
| 14 | 5303201723 | Start Kit Compressor |
|
- | |||||
| 15 | 5303018221 | Capillary Tube-cut To 40`` |
|
- | |||||
| 16 | 08017211 | Drier |
|
- |
