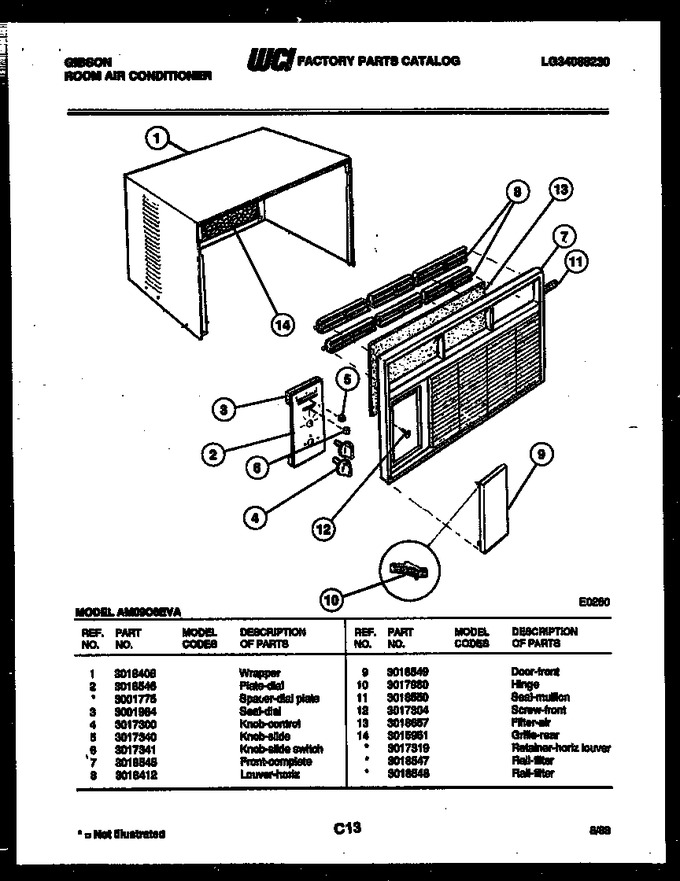

02 - Cabinet Parts
03 - Air Handling Parts
04 - Compressor Parts
05 - Cabinet And Installation Parts
06 - Electrical Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018408 | Wrapper |
|
- | |||||
| 2 | 3018546 | Plate-dial |
|
- | |||||
| 3 | 3001984 | Seal-dial |
|
- | |||||
| 4 | 3017300 | Knob-control |
|
- | |||||
| 5 | 3017340 | Knob-slide |
|
- | |||||
| 6 | 3017341 | Knob - Slide, Switch |
|
- | |||||
| 7 | 3018545 | Front-complete |
|
- | |||||
| 8 | 3018412 | Louver-horiz |
|
- | |||||
| 9 | 3018549 | Door-front |
|
- | |||||
| 10 | 3017980 | Hinge |
|
- | |||||
| 11 | 3018550 | Seal-mullion |
|
- | |||||
| 12 | 3017304 | Screw-front |
|
- | |||||
| 13 | 3018657 | Filter-air |
|
- | |||||
| 14 | 3015951 | Grille - Rear |
|
- | |||||
| *13986 | 3017319 | Retainer-horiz Louver |
|
- | |||||
| *13986 | 3018548 | Rail-filter |
|
- | |||||
| *13986 | 3018547 | Rail-filter |
|
- | |||||
| 2A | 3001775 | Spacer-dial Plate, ( Non-illustrated) |
|
- |
