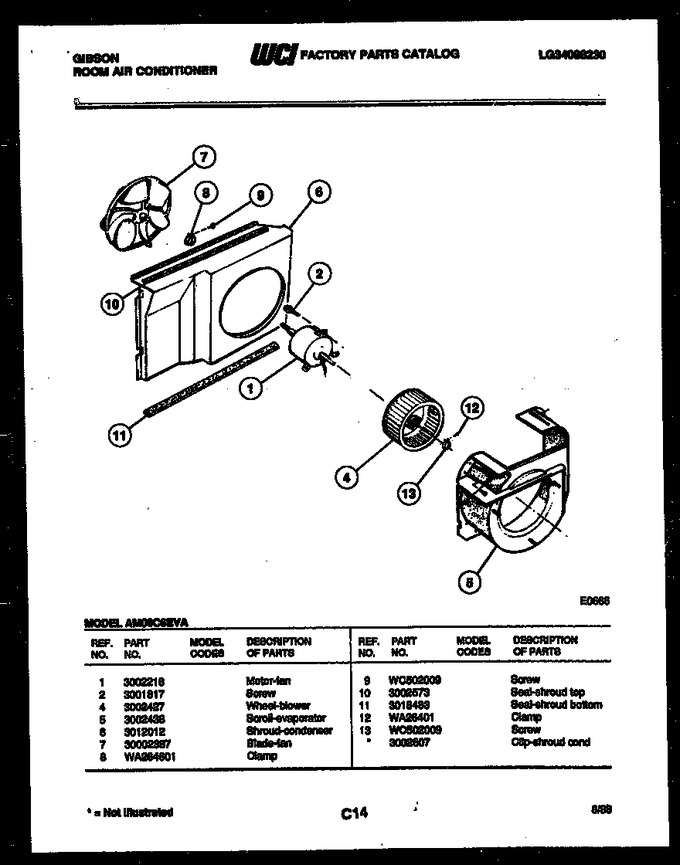

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002218 | Motor-fan |
|
- | |||||
| 2 | 3001817 | Screw |
|
- | |||||
| 4 | 3002427 | Wheel-blower |
|
- | |||||
| 5 | 3002438 | Scroll-evaporator |
|
- | |||||
| 6 | 3012012 | Shroud-condenser |
|
- | |||||
| 7 | 30002387 | Blade-fan |
|
- | |||||
| 8 | WA264601 | Clamp |
|
- | |||||
| 9 | WC502009 | Screw |
|
- | |||||
| 10 | 3002573 | Seal-shroud Top |
|
- | |||||
| 11 | 3018433 | Seal-shroud Bottom |
|
- | |||||
| 12 | WA26401 | Clamp |
|
- | |||||
| 13 | WC502009 | Screw |
|
- | |||||
| *13987 | 3002607 | Clip-shroud Cond |
|
- |
