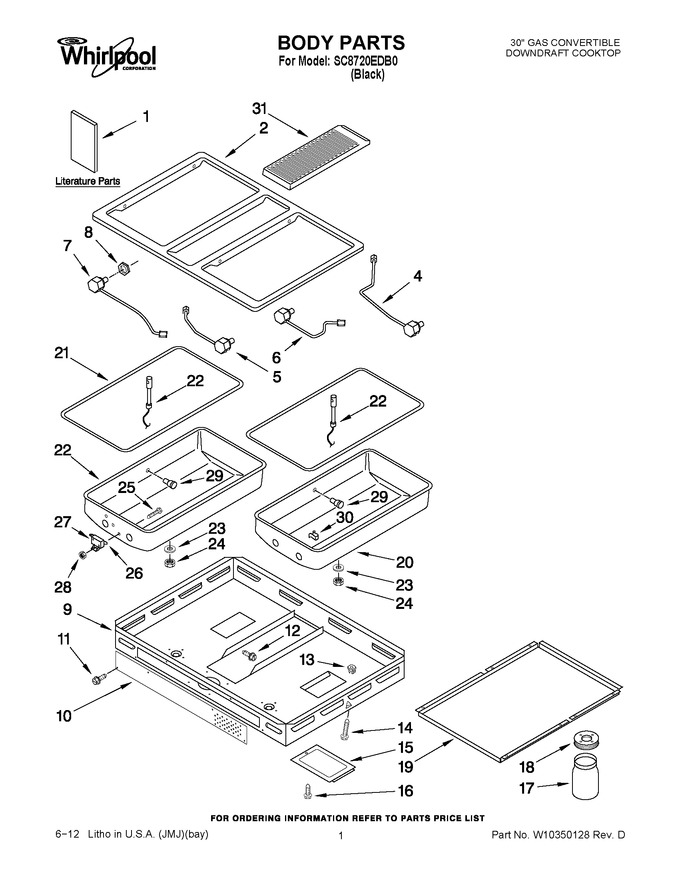

01 - Body Parts
02 - Blower Parts
03 - Control Panel Parts
04 - Burner Module Parts
05 - Grill Module Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P350-60 | Installation Instructions |
|
- | |||||
| 1 | 8111P466-60 | Owners Manual |
|
- | |||||
| 1 | 8104P576-60 | Diagram, Wiring |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Test |
|
$ 6.65 | |||||
| 2 | 2001W134-09 | Top, Main (black) |
|
$ 228.09 | |||||
| 4 | 7506P159-60 | Tube, Burner (rr) |
|
- | |||||
| 5 | 7506P160-60 | Tube, Burner (rf) |
|
- | |||||
| 6 | 7506P162-60 | Tube, Burner (lf) |
|
- | |||||
| 7 | 7506P161-60 | Tube, Burner (lr) |
|
- | |||||
| 8 | 7109P055-60 | Washer, Tubing (4) |
|
- | |||||
| 8 | 7103P161-60 | Nut, Tubing (4) |
|
- | |||||
| 9 | 4011F362-51 | Box, Burner |
|
- | |||||
| 10 | 4005F614-51 | Cover, Front |
|
- | |||||
| 11 | WP90767 | Screw, Cover (4) (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | 71003131 | Screw, Support (6) (Replaces: 7101P472-60) |
|
Immediately | $ 6.07 | ||||
| 13 | M0282009 | Nut, Hold Down (Replaces: 7103P153-60) |
|
$ 12.06 | |||||
| 14 | W11233072 | Screw, Hold Down (Replaces: 7101P432-60) |
|
Immediately | $ 12.62 | ||||
| 15 | 4005F508-51 | Cover, Access (rt) |
|
- | |||||
| 16 | 3400855 | Screw, Cover (4) (Replaces: 7101P448-60) |
|
- | |||||
| 17 | WPY707869 | Jar, Grease (Replaces: 8312P120-60) |
|
$ 61.43 | |||||
| 18 | 8312P150-60 | Lid-jar |
|
- | |||||
| 19 | 3601F261-51 | Baffle, Bottom(lt) |
|
$ 216.98 | |||||
| 20 | 3401F033-19 | Pan, Module (left) |
|
- | |||||
| 20 | 3401F034-19 | Pan, Module (right) |
|
$ 79.26 | |||||
| 21 | 7212P053-60 | Seal, Pan |
|
- | |||||
| 22 | WP71002179 | Igniter, Spark (Replaces: 7432P088-60) |
|
$ 181.49 | |||||
| 23 | 7109P054-60 | Lockwasher (2) |
|
- | |||||
| 24 | 7103P158-60 | Nut, Jam (2) |
|
- | |||||
| 25 | 7101P405-60 | Screw, Pan |
|
- | |||||
| 26 | 7414P023-60 | Insulator, Switch |
|
- | |||||
| 27 | 7403P620-60 | Switch, Micro |
|
$ 141.22 | |||||
| 28 | 7103P159-60 | Nut, Switch (2) |
|
- | |||||
| 29 | 71001764 | Pin, Locator (3) (Replaces: 7113P020-60) |
|
$ 8.68 | |||||
| 30 | 7104P011-60 | Clip, Pan (4) |
|
- | |||||
| 31 | 7772P007-60 | Cover, Vent (black) |
|
$ 100.70 |
