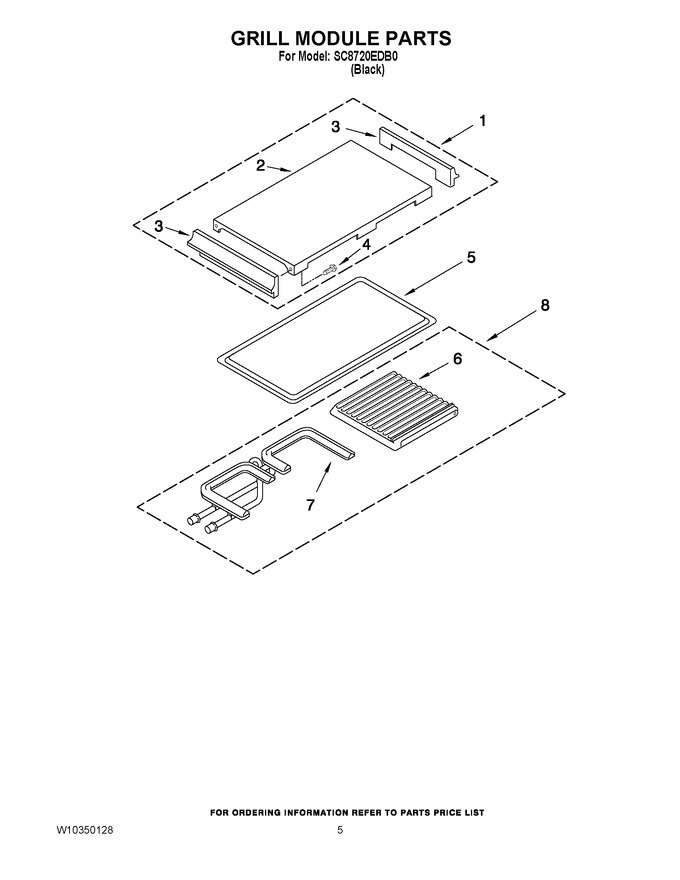

05 - Grill Module Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SCM50DB | Cover, Grill (complete) (black) |
|
- | |||||
| 2 | 4005W501-70 | Panel, Cover (black) |
|
- | |||||
| 3 | 7701P176-60 | Handle (2) (black) |
|
- | |||||
| 4 | W11233072 | Screw, Handle (4) (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 5 | 4378931 | Griddle (optional) |
|
- | |||||
| 6 | 12001178 | Grate, Grill (2) |
|
$ 316.58 | |||||
| 7 | Y712601 | Burner, Grill (Replaces: 7505P289-60) |
|
$ 304.99 | |||||
| 8 | 4378986 | Module, Complete (available In Black Only) |
|
- |
