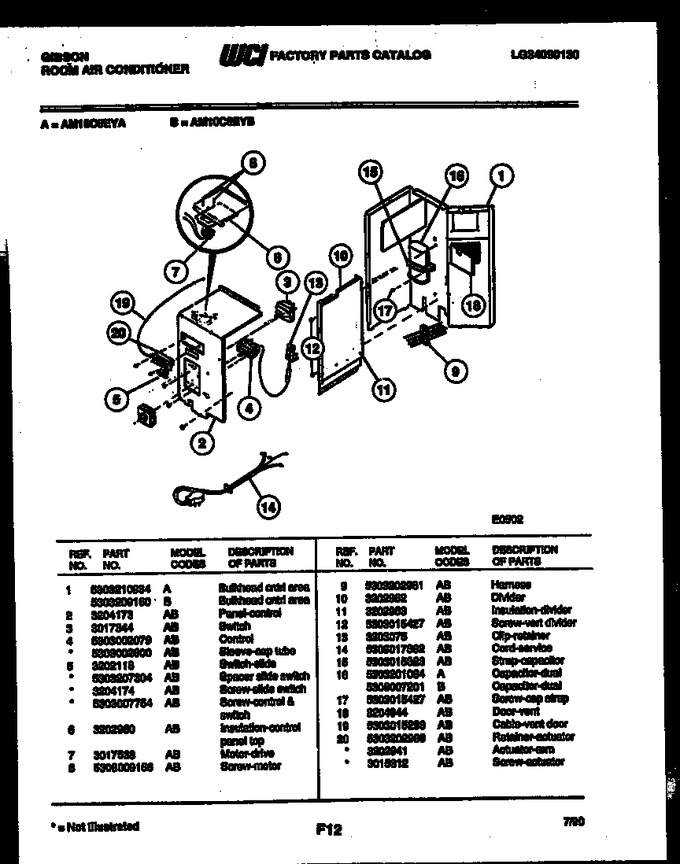

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
07 - Unit Parts
08 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead Cntrl Area |
|
- | |||||
| 2 | 3204173 | Panel - Control |
|
- | |||||
| 3 | 3017344 | Switch |
|
$ 166.42 | |||||
| 4 | 5303002079 | Control |
|
- | |||||
| 5 | 3202118 | Switch - Slide |
|
- | |||||
| 6 | 3202960 | Insulation-control Panel Top |
|
- | |||||
| 7 | 3017538 | Motor-drive |
|
- | |||||
| 8 | 5308009156 | Screw-motor |
|
- | |||||
| 9 | 5303202961 | Harness |
|
- | |||||
| 10 | 3202962 | Divider |
|
- | |||||
| 11 | 3202963 | Insulation-divider |
|
- | |||||
| 12 | 5303015427 | Screw-vent Divider |
|
- | |||||
| 13 | 3203075 | Clip-retainer |
|
- | |||||
| 14 | 5308017362 | Cord-service |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303201064 | Capacitor (dual) |
|
- | |||||
| 17 | 5303015427 | Screw-cap Strap |
|
- | |||||
| 18 | 3204944 | Door-vent |
|
- | |||||
| 19 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 20 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 4A | 5303002600 | Sleeve-cap Tube (non-illustrated) |
|
- | |||||
| 5A | 5303207304 | Spacer-slide Switch (non-illustrated) |
|
- | |||||
| 5B | 3204174 | Screw - Slide Switch (non-illustrated) |
|
- | |||||
| 5C | 5303007754 | Screw-control & Switch (non-illustrated) |
|
- |
