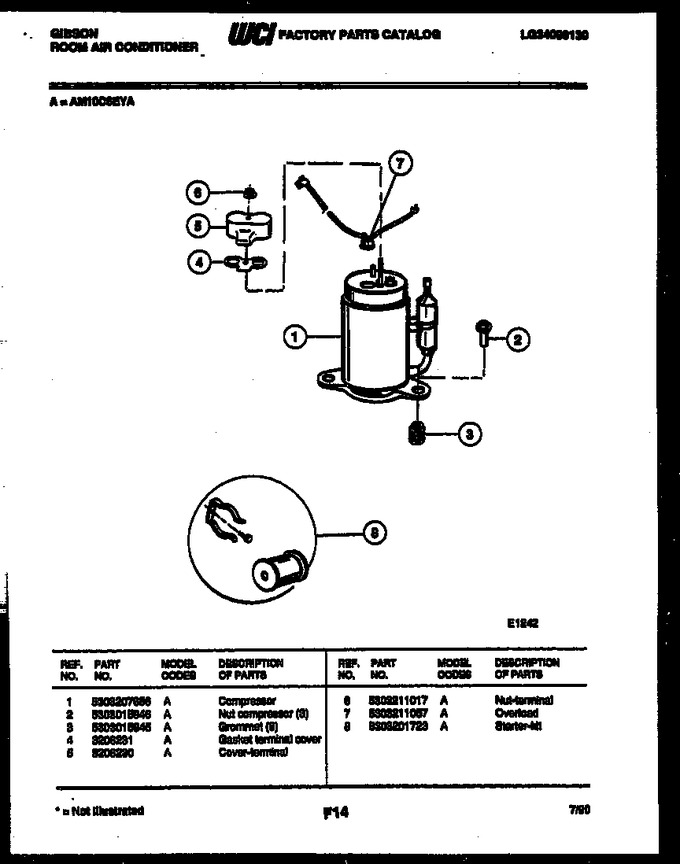

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207656 | Compressor |
|
- | |||||
| 2 | 5303015946 | Nut-compressor (3) |
|
- | |||||
| 3 | 5303015945 | Grommet (3) |
|
- | |||||
| 4 | 3206231 | Gasket Terminal Cover |
|
- | |||||
| 5 | 3206230 | Cover-terminal |
|
- | |||||
| 6 | 5303211017 | Nut-terminal |
|
- | |||||
| 7 | 5303211057 | Overload |
|
- | |||||
| 8 | 5303201723 | Starter Kit |
|
- |
